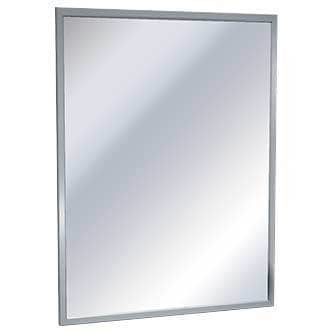

ASI 0620-1836 (18 x 36) Stainless Steel Channel Frame Mirror, 18" Wide X 36" High

ASI
SKU: C3055543
MPN : 0620-1836
Weight : 50.0 lb

filler

Availability : Usually Ships in 2-3 Business Days

18"W x 36"H

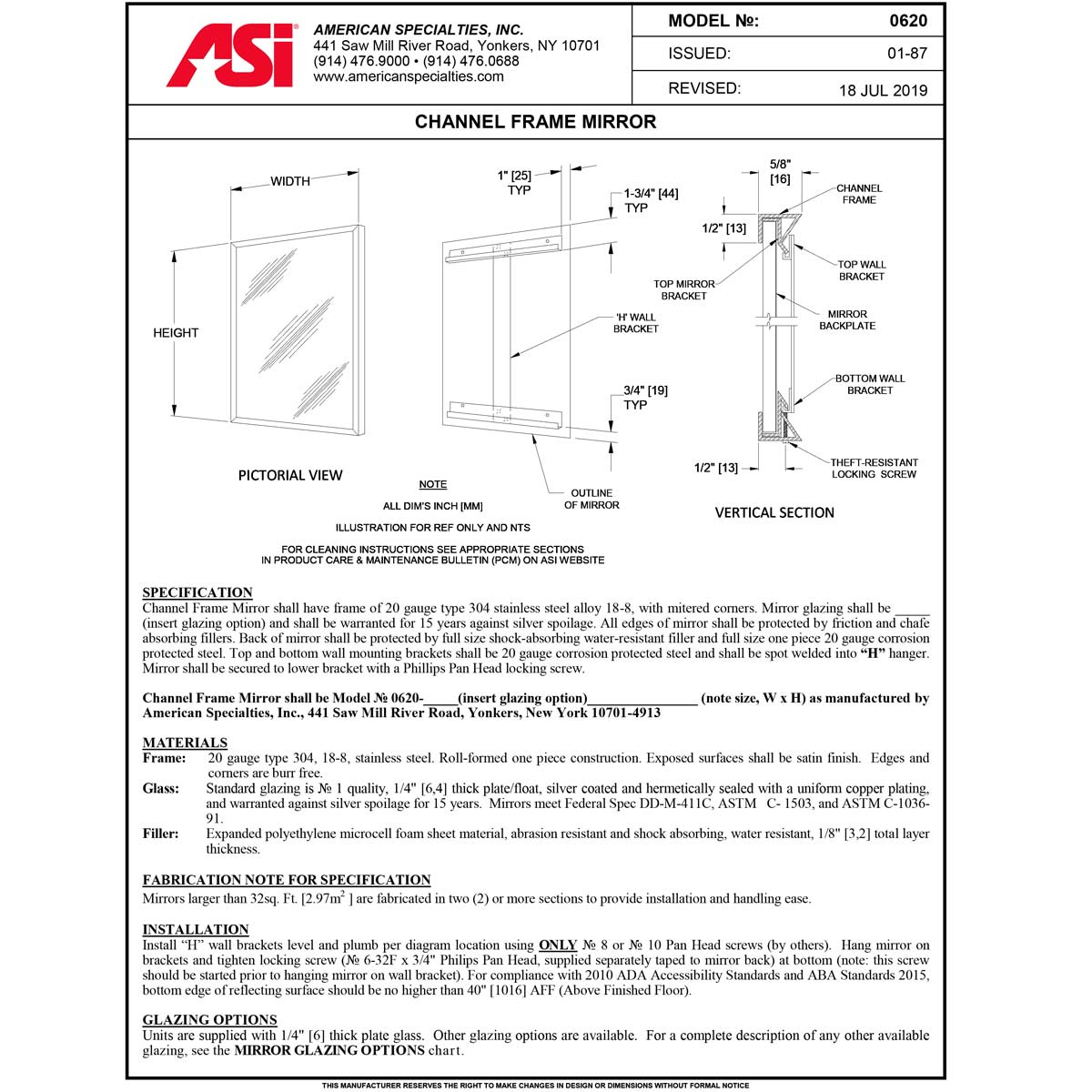

1/2" X 1/2" (13 x 13 mm) 20 gauge type 304 satin finish stainless steel channel is a one-piece roll formed member that encases mirror and backing revealing a tight mitered corner. Mirror is installed on two wall brackets and held secure by theft-resistant screws. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be fabricated of 20-gauge corrosion-protected steel and shall be spot welded into the "H" hanger. Mirror shall be secured to lower bracket with a Phil-lips Pan Head locking screw.

Tech Data

Product Type	Channel Frame Mirror
Height	36
Width	18
ADA Compliant	Yes
Frame Type	Channel
