ASI 6462-41 Piatto Recessed Paper Towel Dispenser and Waste Receptacle, Black Phenolic Door, 17-1/4" x 54" x 6-9/16"

Please note: once in production, ASI Piatto items cannot be canceled or returned. Please double check your measurements before ordering.

• Designed to be completely recessed with no protrusion from the wall at all
• Black phenolic door unique to Piatto™ adds elegance
• Furniture style hinges are field adjustable to ensure perfect fit
• All metal parts are made of Type 304 Stainless Steel
• All hardware, including the latch, is concealed
• Frame & cabinet 20 guage
• Fits with virtually no gap into a finished wall opening

This sophisticated combination paper towel and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto Collection its minimalist appeal.Dispenses 600 C-fold, 800 multi-fold, or 1,100 standard single-fold towels (with provided adapter). 9 gal. (34 L) stainless steel waste receptacle. Rolled edged finger hole allows for easy servicing and removal. Paper towels are manually withdrawn through dispensing slot. An adjustable towel adapter ensures that towels feed properly until depleted. Unit will continue to feed properly when reloaded with a partial load in place. Refill dispenser by unlatching door and replacing towels for an empty or partially empty unit.

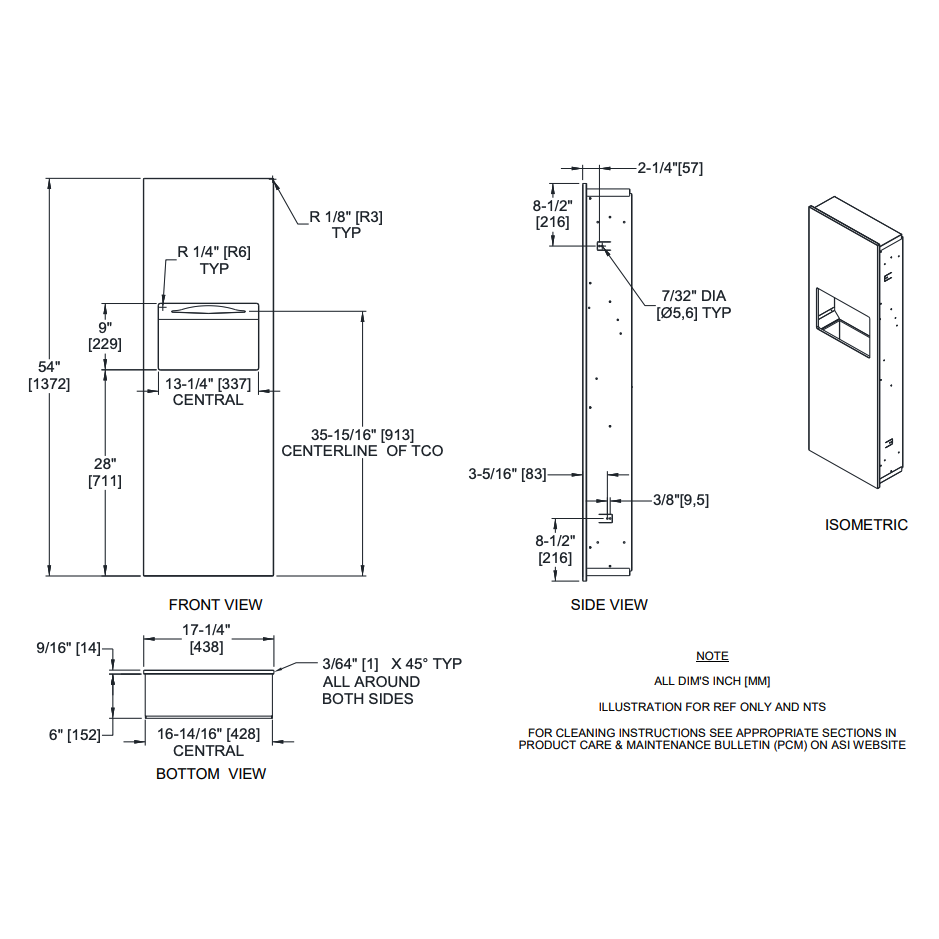

Finished Wall Opening (FWO):
17-5/16" x 54-1/16" x 6-11/16" (440 x 1373 x 170 mm) min

Unit Size:
17-1/4" x 54" x 6-9/16" (438 x 1372 x 166 mm)

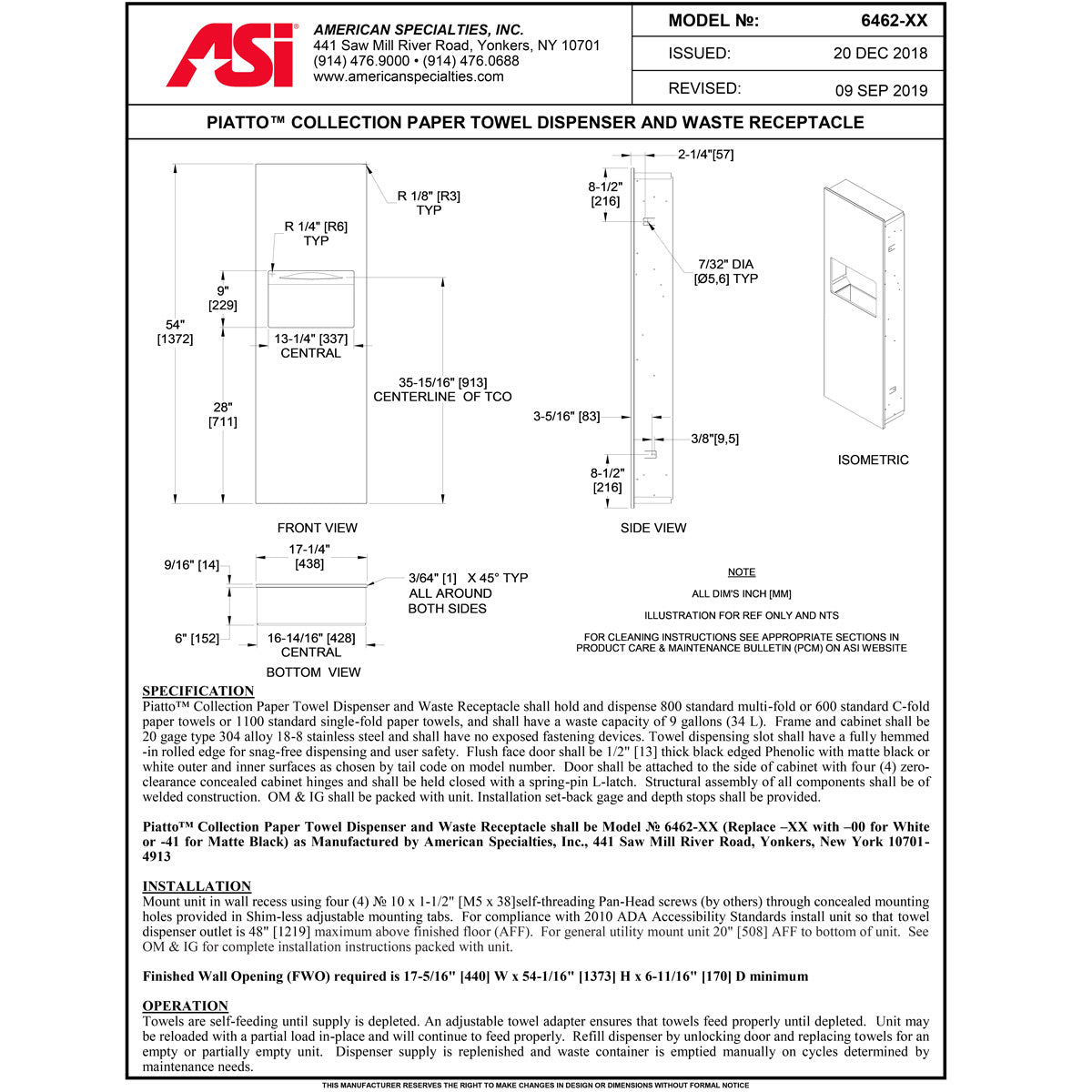

From the Tech Data

SPECIFICATION
Piatto™ Collection Paper Towel Dispenser and Waste Receptacle shall hold and dispense 800 standard multi-fold or 600 standard C-fold paper towels or 1100 standard single-fold paper towels, and shall have a waste capacity of 9 gallons (34 L). Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Towel dispensing slot shall have a fully hemmed -in rolled edge for snag-free dispensing and user safety. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with four (4) zero clearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.

Piatto™ Collection Paper Towel Dispenser and Waste Receptacle shall be Model № 6462-XX (Replace –XX with –00 for White or -41 for Matte Black) as Manufactured by American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701- 4913

INSTALLATION
Mount unit in wall recess using four (4) № 10 x 1-1/2" [M5 x 38]self-threading Pan-Head screws (by others) through concealed mounting holes provided in Shim-less adjustable mounting tabs. For compliance with 2010 ADA Accessibility Standards install unit so that towel dispenser outlet is 48" [1219] maximum above finished floor (AFF). For general utility mount unit 20" [508] AFF to bottom of unit. See OM & IG for complete installation instructions packed with unit. Finished Wall Opening (FWO) required is 17-5/16" [440] W x 54-1/16" [1373] H x 6-11/16" [170] D minimum

OPERATION
Towels are self-feeding until supply is depleted. An adjustable towel adapter ensures that towels feed properly until depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Refill dispenser by unlocking door and replacing towels for an empty or partially empty unit. Dispenser supply is replenished and waste container is emptied manually on cycles determined by maintenance needs.
