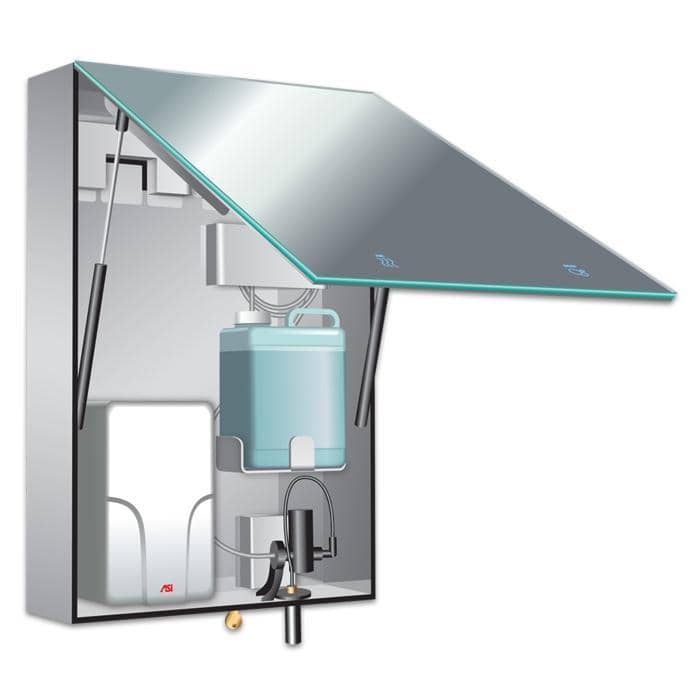

ASI Velare Behind the Mirror System w/ Foam Soap Dispenser and 208-220V Hand Dryer - 0663-2

ASI
SKU: C3068942
MPN : 0663-2
Weight : 72.0 lb

filler

Price:
$2,581.17 $4,693.04

Availability : Usually Ships in 2-3 Business Days
  • All in One Mirror Cabinet, Hand Dryer (208-220V) and Foam Soap Dispenser
  • Hands Free Automatic Soap Dispenser holds 1.5 Gal of Foam Soap
  • High Speed Hand Dryer (208-220V) includes HEPA Filter
  • Features Backlit Icons Indicating Soap and Hand Dryer Functions
  • Mirror is made from 1/4" (6 mm) thick frameless tempered glass conforming to ASTM C-1048
  • Designed for Elegance and Safety in Mind, Concealing Consumables in a Cabinet Made from Type 304 Stainless Steel.

Velare Behind the Mirror (BTM) is designed for elegance and safety in mind, concealing consumables in a cabinet made from type 304 stainless steel. The mirrored door cabinet features backlit icons indicating the functions on the bottom panel of each module. The mirror is made from 1/4" (6 mm) thick frameless tempered glass conforming to ASTM C-1048 with pencil edges and eased corners with SS sheet intermediate stiffener and SS back plate with integral welded support mounts, hinge and lock keeper.

The mirrored door is attached to the cabinet using a full width 3/16" diameter (Ø4.8) concealed piano hinge and is secured shut using a tumbler lock and key. Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.

This wall mounted stainless steel cabinet conceals a hands-free automatic foam soap dispenser with a 1.5 gal (6 L) capacity, a high speed hand dryer (208-220V) with HEPA Filter. Mirror backlights operate on 100 – 240 VAC provided to quad (double-duplex) outlet (by others) concealed behind the cabinet into which a standard appliance power cord and AC adapters are plugged into at installation.

Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.  Viscosity Range (mPa·s or cP): 1 – 100 pH Range: 5.5 ~ 8.5

Matching filler modules (FM) are available as spacers between cabinets.

Dimensions:
23-5/8" x 35-7/16" x 7-9/16" (600 x 900 x 192)
