Bobrick 150CX48.MBLK (48 x 1.5) Matte Black 48" Straight Grab Bar

48" Grab Bars

Bobrick Matte Black Collection

• Constructed from type 304 stainless steel with a matte black finish.
• Comfortable 1 1/2" diameter grip.
• Seamless look with concealed mounting flanges.
• ADA compliant for accessibility standards.

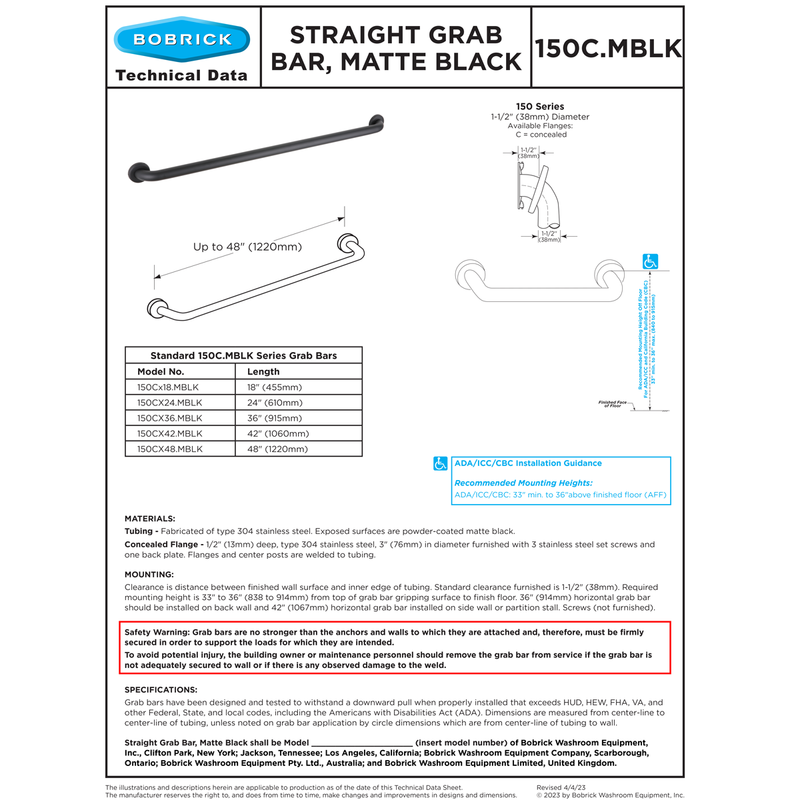

MATERIALS:
Tubing - Fabricated of type 304 stainless steel. Exposed surfaces are powder-coated matte black.
Concealed Flange - 1/2" (13mm) deep, type 304 stainless steel, 3" (76mm) in diameter furnished with 3 stainless steel set screws and one back plate. Flanges and center posts are welded to tubing.

MOUNTING:
Clearance is distance between finished wall surface and inner edge of tubing. Standard clearance furnished is 1-1/2" (38mm). Required mounting height is 33" to 36" (838 to 914mm) from top of grab bar gripping surface to finish floor. 36" (914mm) horizontal grab bar should be installed on back wall and 42" (1067mm) horizontal grab bar installed on side wall or partition stall. Screws (not furnished)

SPECIFICATIONS:
Grab bars have been designed and tested to withstand a downward pull when properly installed that exceeds HUD, HEW, FHA, VA, and other Federal, State, and local codes, including the Americans with Disabilities Act (ADA). Dimensions are measured from center-line to center-line of tubing, unless noted on grab bar application by circle dimensions which are from center-line of tubing to wall.
