Bobrick B-2112 Commercial Liquid Soap Dispenser, Surface-Mounted, Manual-Push, Stainless Steel - 40 Oz

• Vandal Resistant locking cover and free-turning spout

• high-impact-resistant ABS plastic with a shatter-resistant polyethylene container,

• 34-fl oz-(1-L) capacity,

• 6" (150mm) spout length,
• 4" (100mm) mounting thickness, bright-polished spout

B-8226 Soap Dispenser Corrosion resistant soap dispenser has vandal-resistant locking cover and free-turning spout. Body and shank are high-impact-resistant ABS plastic with a shatter-resistant polyethylene container, 34-fl. oz. (1.0-L) capacity, 6" (150mm) spout length, 4" (100mm) mounting thickness, bright-polished spout.

MATERIALS:
Piston, Spout, and Top Cover — Type-304 stainless steel with bright polished fi nish.
Cover Spacer — Rigid, impact-resistant polyester.
Escutcheon — Chrome-plated, high-impact-resistant ABS with bright polished finish. Concealed locking mechanism.
Body and Shank — High-impact-resistant plastic.
Valve — ABS cylinder. Stainless steel spring. U-packing seal and duckbills.
Container — Translucent, shatter-resistant polyethylene. Capacity: 34-fl oz (1.0-L).

OPERATION:

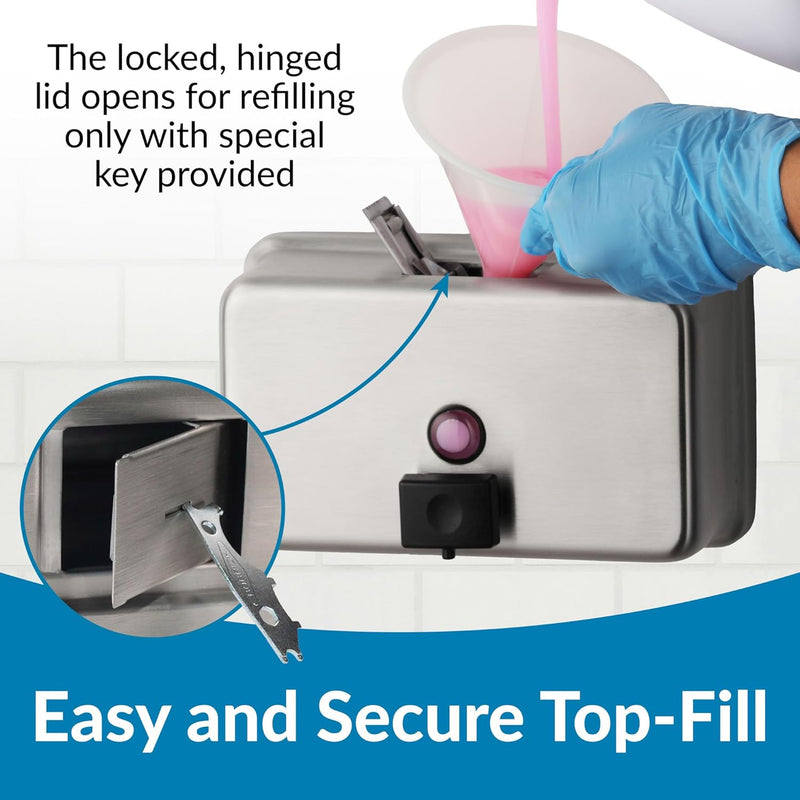

Press piston down to dispense commercially marketed all purpose hand soaps. Vandal-resistant spout can rotate 360° without damage to unit. Escutcheon locks to body with concealed locking mechanism that is opened with special key provided. To fi ll from top, unlock cover and remove piston, spout, and supply-tube assembly. Unit may also be fi lled by removing container from below lavatory. Designer's Note: Bobrick liquid soap dispensers are designed to dispense commercially marketed all purpose hand soaps including liquid and lotion soaps, synthetic detergents, and antibacterial soaps containing PCMX and/or Triclosan.

INSTALLATION:
Unit is designed for installation in 1" (25mm) diameter hole in porcelain-enameled steel, cast-iron or vitreous-china lavatories, as well as in countertops adjacent to lavatories. Unit may be mounted in unused faucet hole or through special hole requisitioned when lavatory is ordered from manufacturer (specify punching location). Shank accommodates maximum 4" (100mm) mounting thickness and can be cut in the fi eld. Clearance required for container diameter is 3-3/8" (85mm).

SPECIFICATION:
Lavatory-mounted soap dispenser shall dispense commercially marketed all purpose hand soaps. Piston and spout assembly shall be type-304 stainless steel with bright polished fi nish. Spout shall rotate 360° without damage to valve mechanism. Escutcheon shall lock to body with concealed locking mechanism that is opened with special key provided. Piston, spout, and supply-tube assembly shall be removable from top for fi lling and maintenance. Valve shall be equipped with plastic cylinder, stainless steel spring, U-packing seal, and duckbills. Shank shall accommodate mounting thicknesses up to 4" (100mm). Translucent, shatter-resistant polyethylene container shall have a capacity of 34-fl oz (1.0-L).
