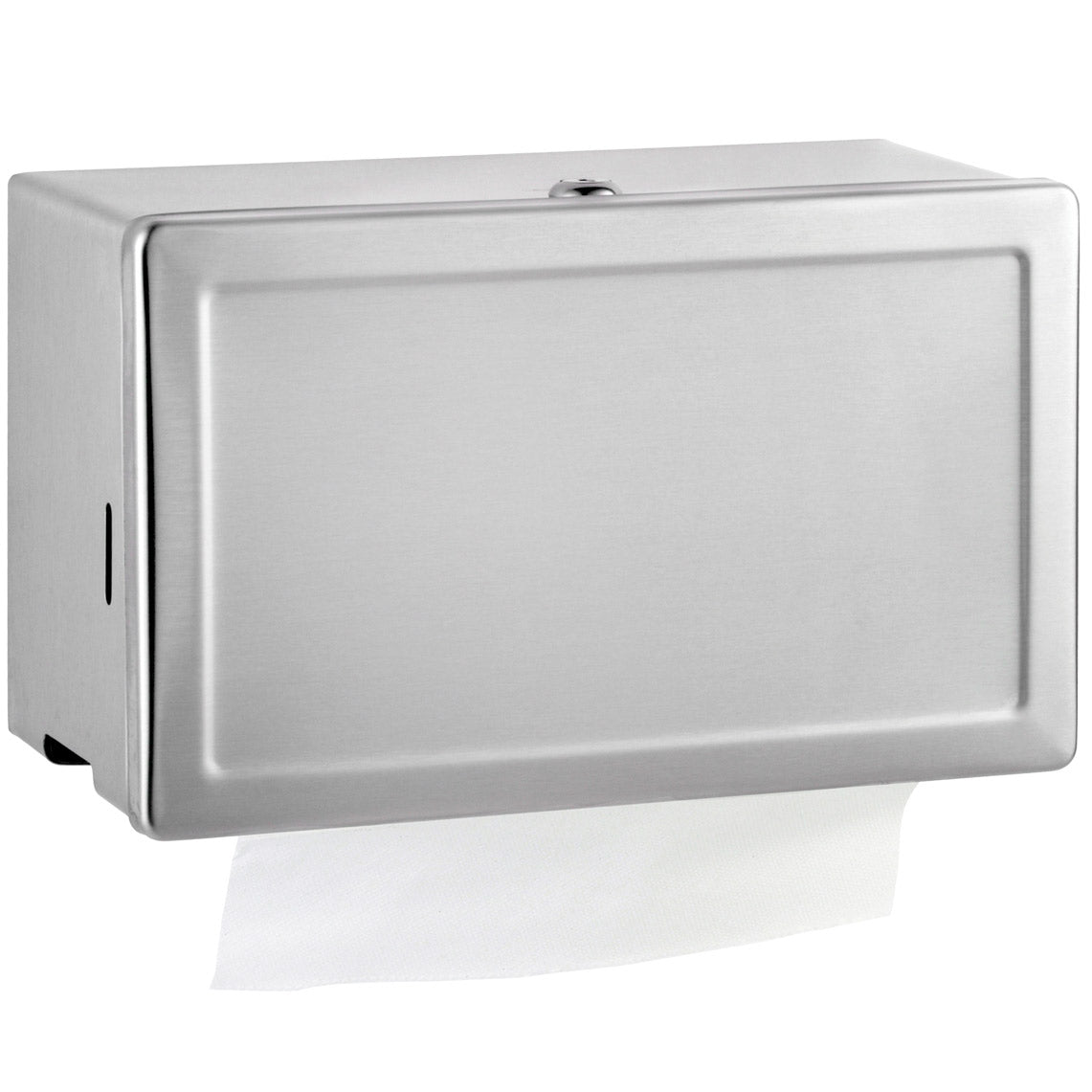

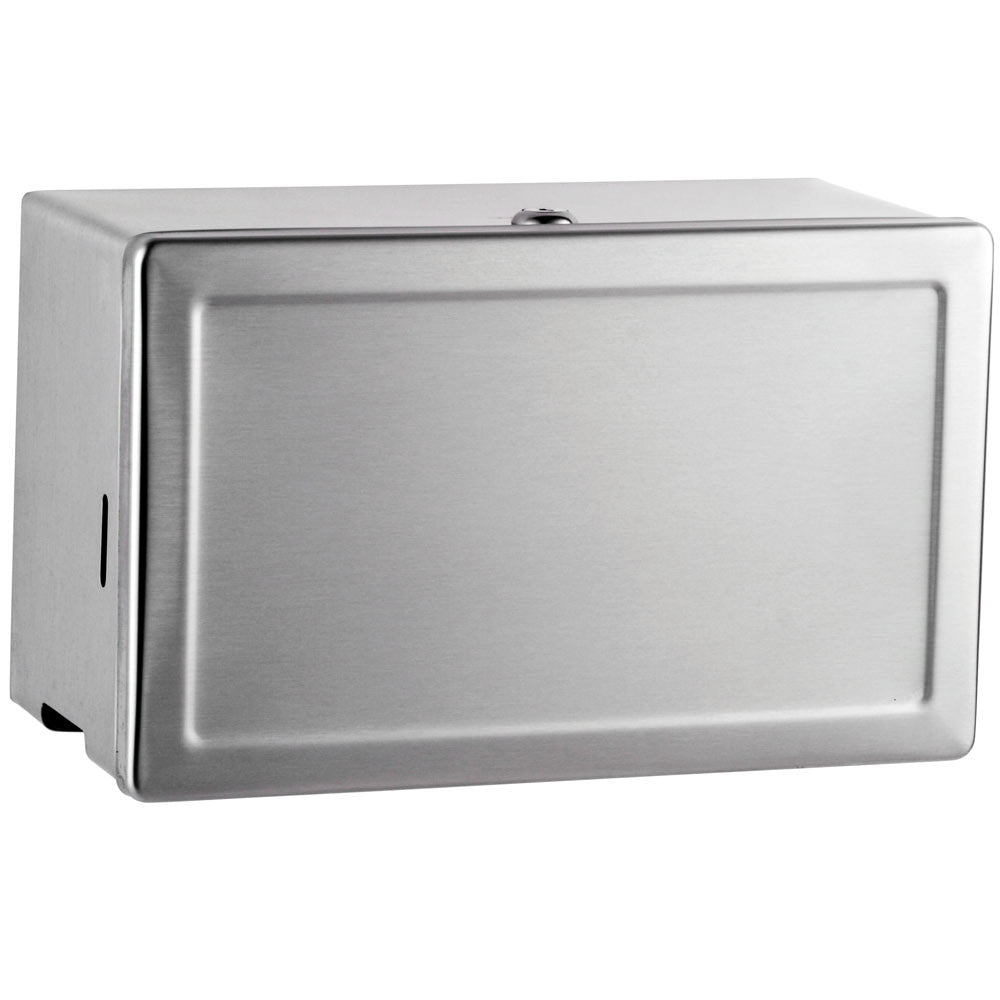

- Satin-finish stainless steel

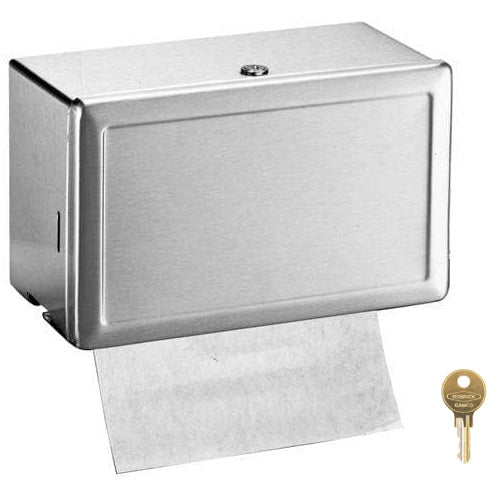

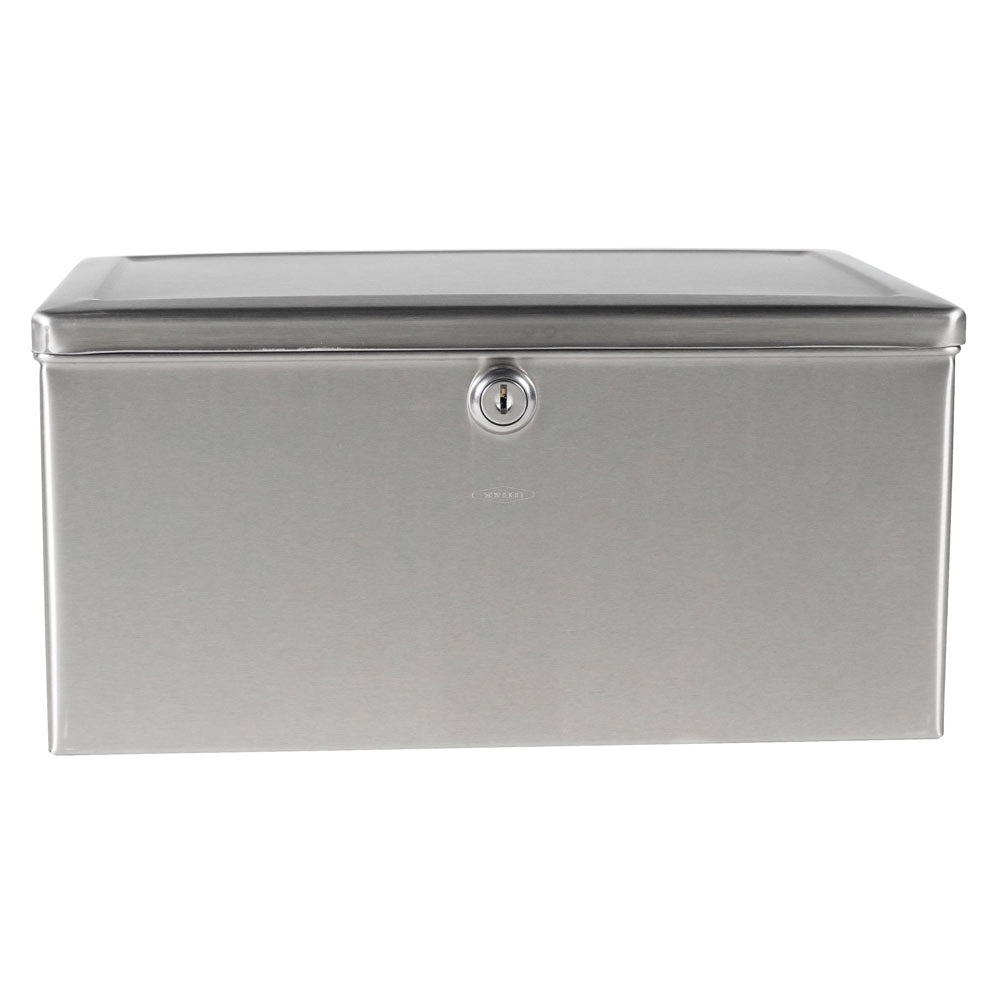

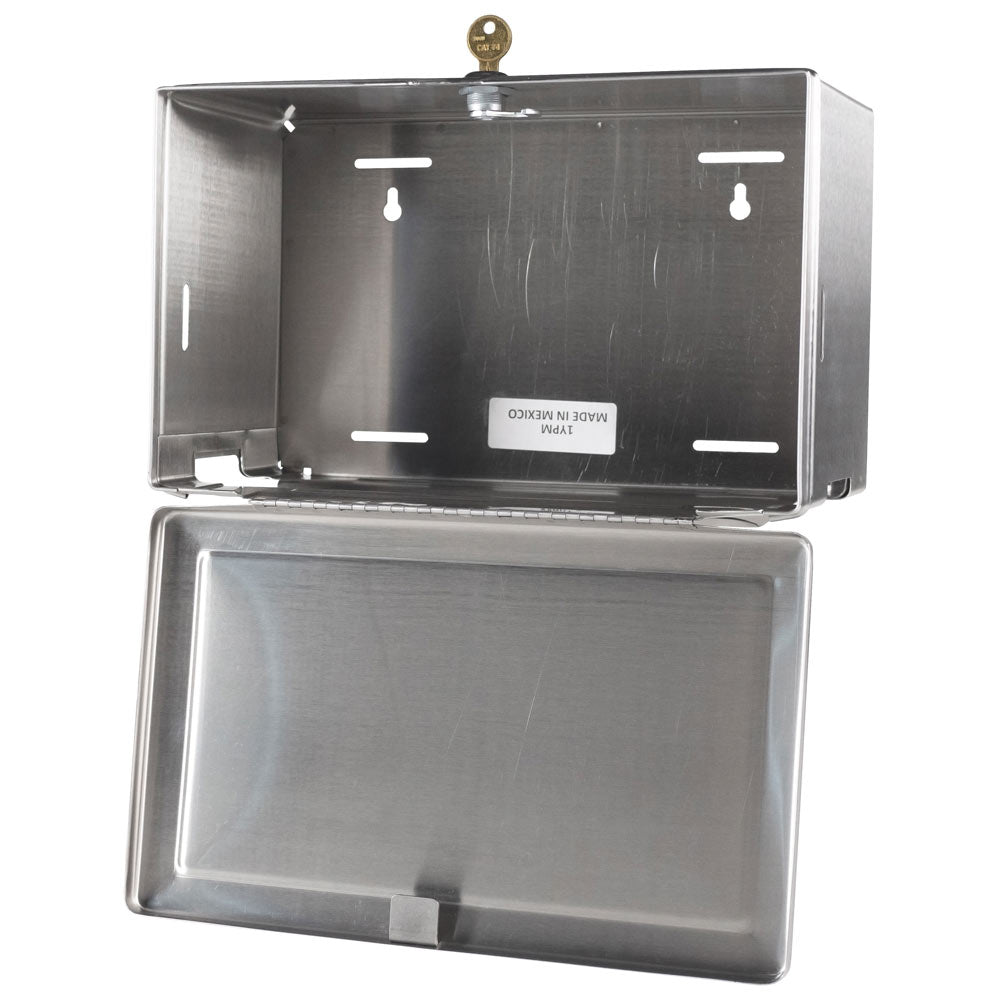

- Tumbler lock on top of cabinet

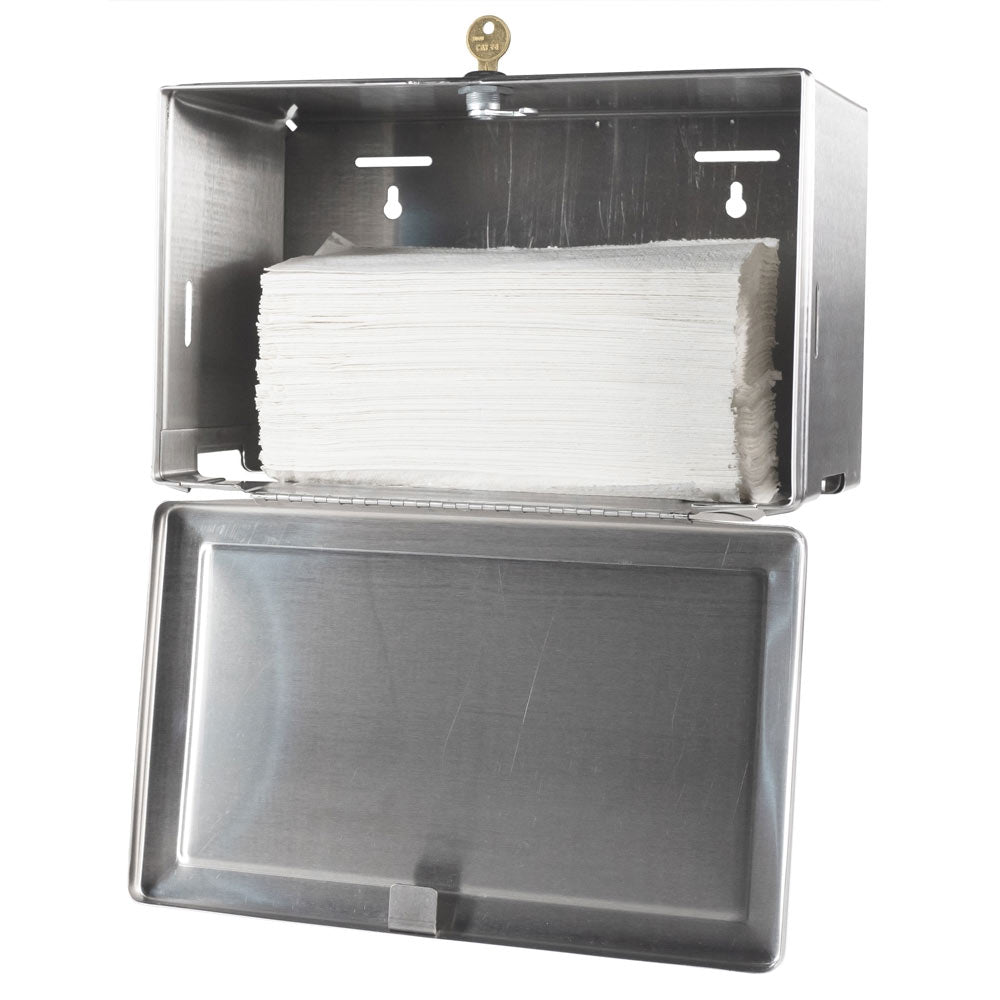

- Dispenses 400 single-fold towels

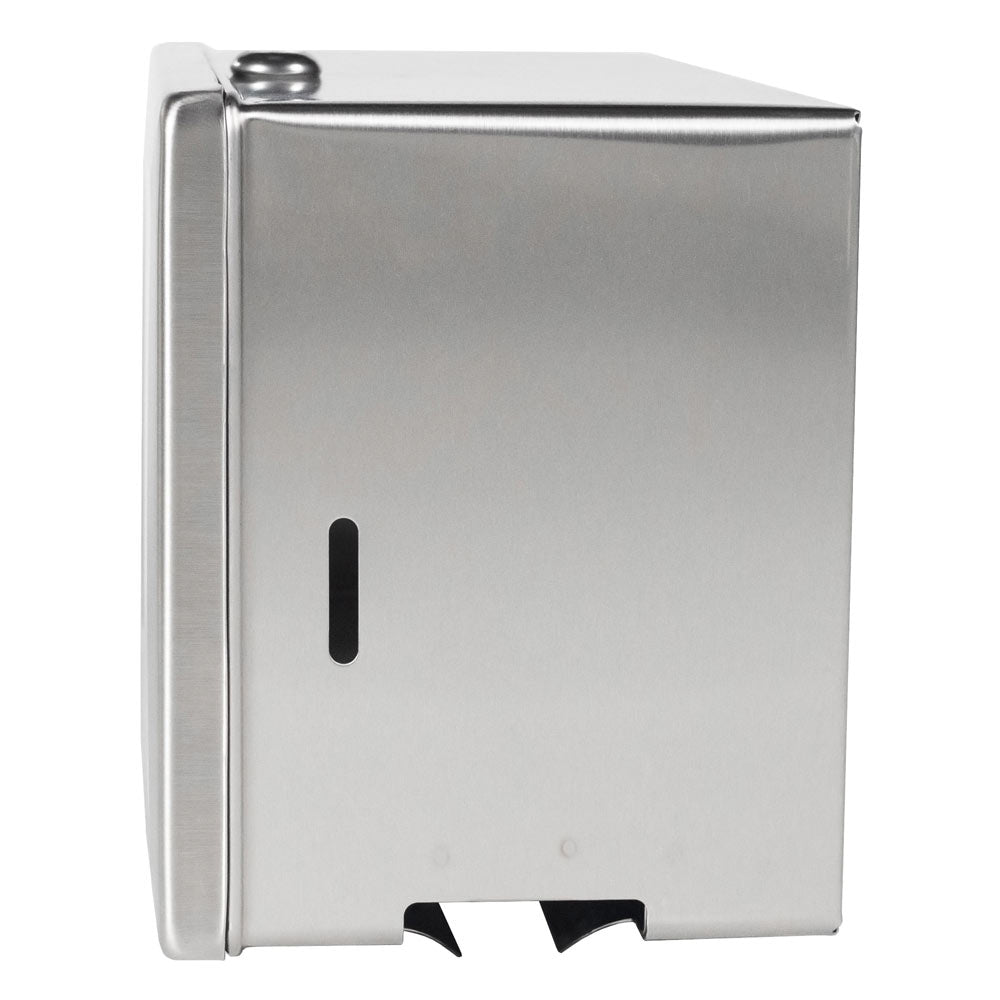

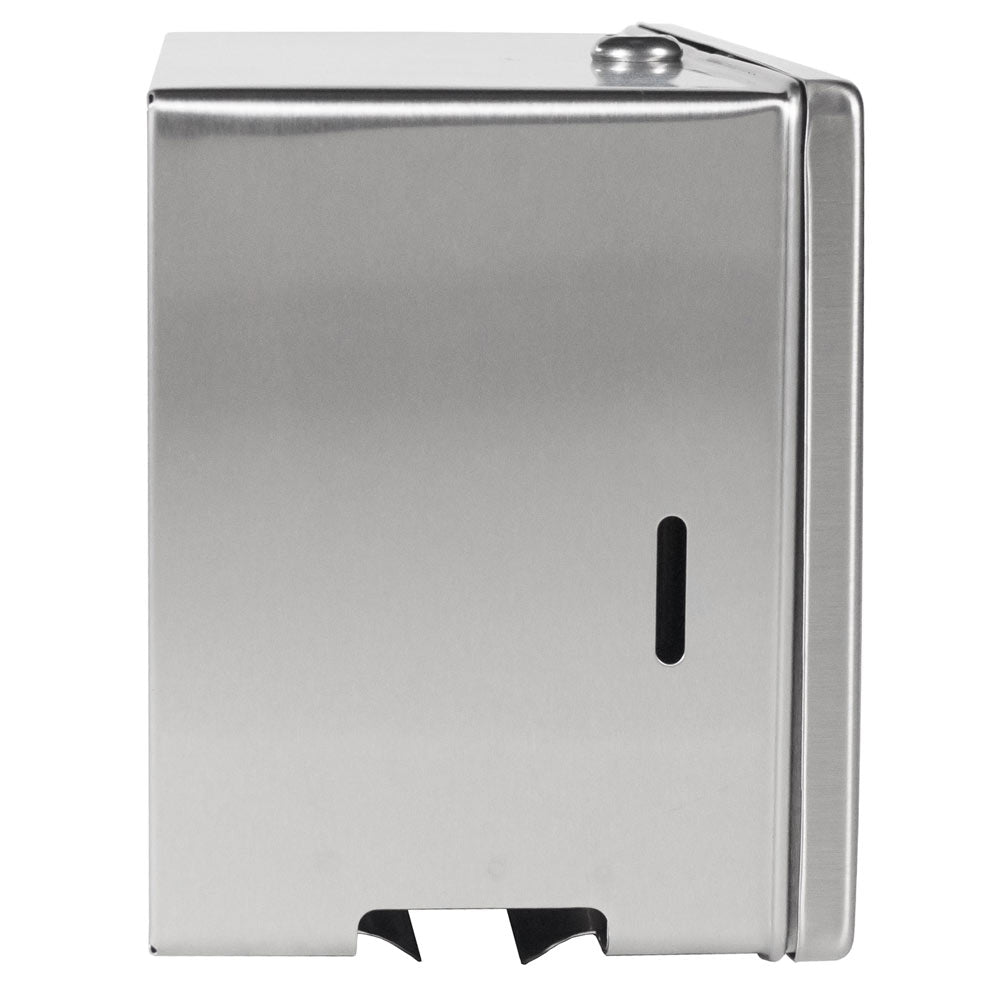

- Cabinet slots indicate refill time
- Unit 12-1/8" W, 7-1/4" H, 6-1/8" D (310 x 185 x 155mm)

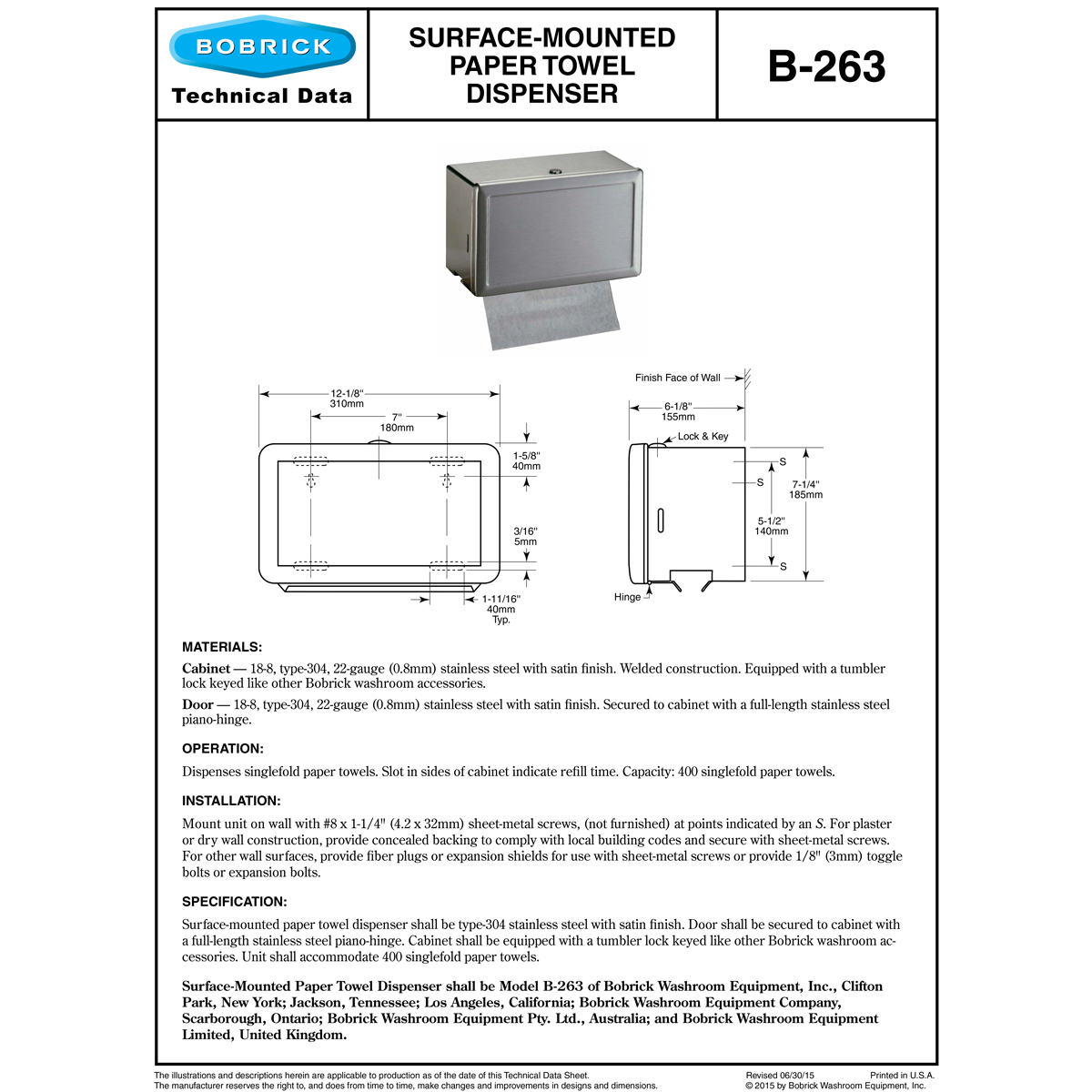

Satin-finish stainless steel. Tumbler lock on top of cabinet. Dispenses 400 singlefold towels. Cabinet slots indicate refill time. Unit 12 1/8" W, 7 1/4" H, 6 1/8" D (310 x 185 x 155mm).
Materials:
Cabinet — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Welded construction. Equipped with a tumbler lock keyed like other Bobrick washroom accessories.

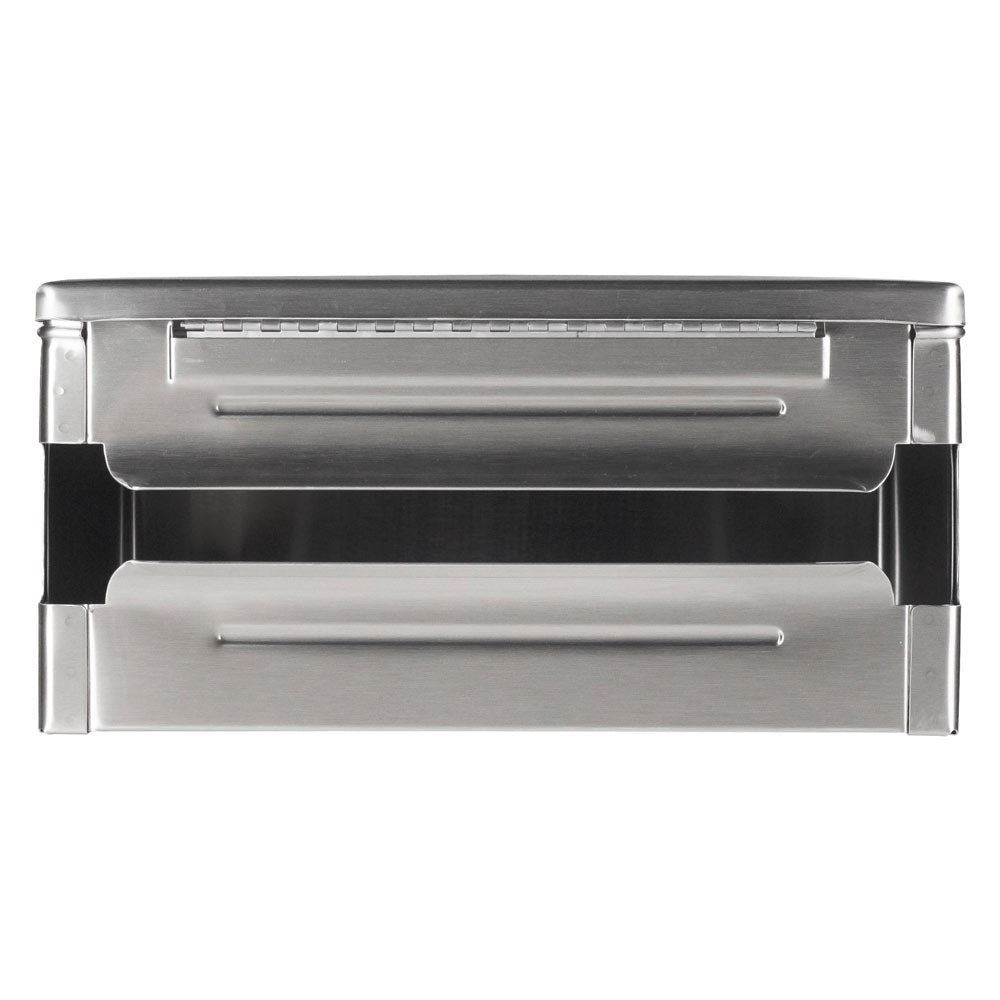

Door — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Secured to cabinet with a full-length stainless steel piano-hinge.
Operation:

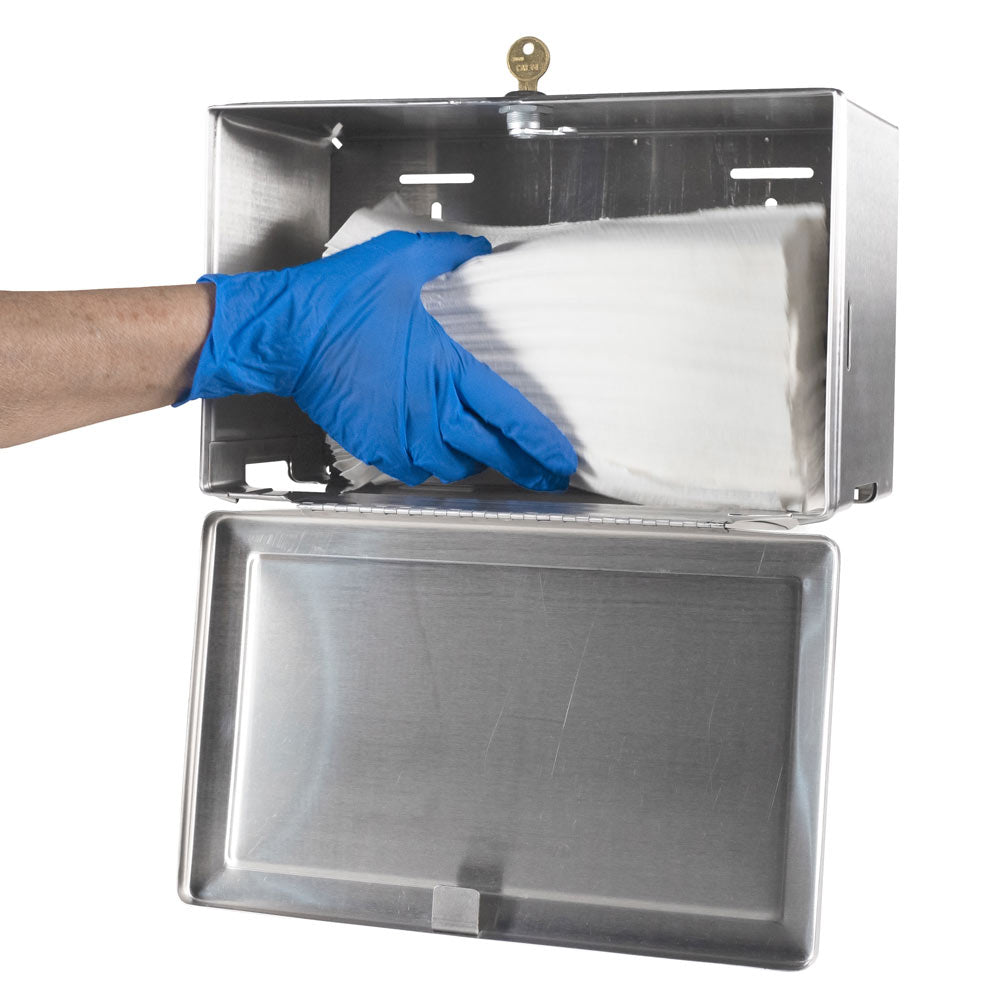

Dispenses singlefold paper towels. Slot in sides of cabinet indicate refill time. Capacity: 400 singlefold paper towels.
Installation:

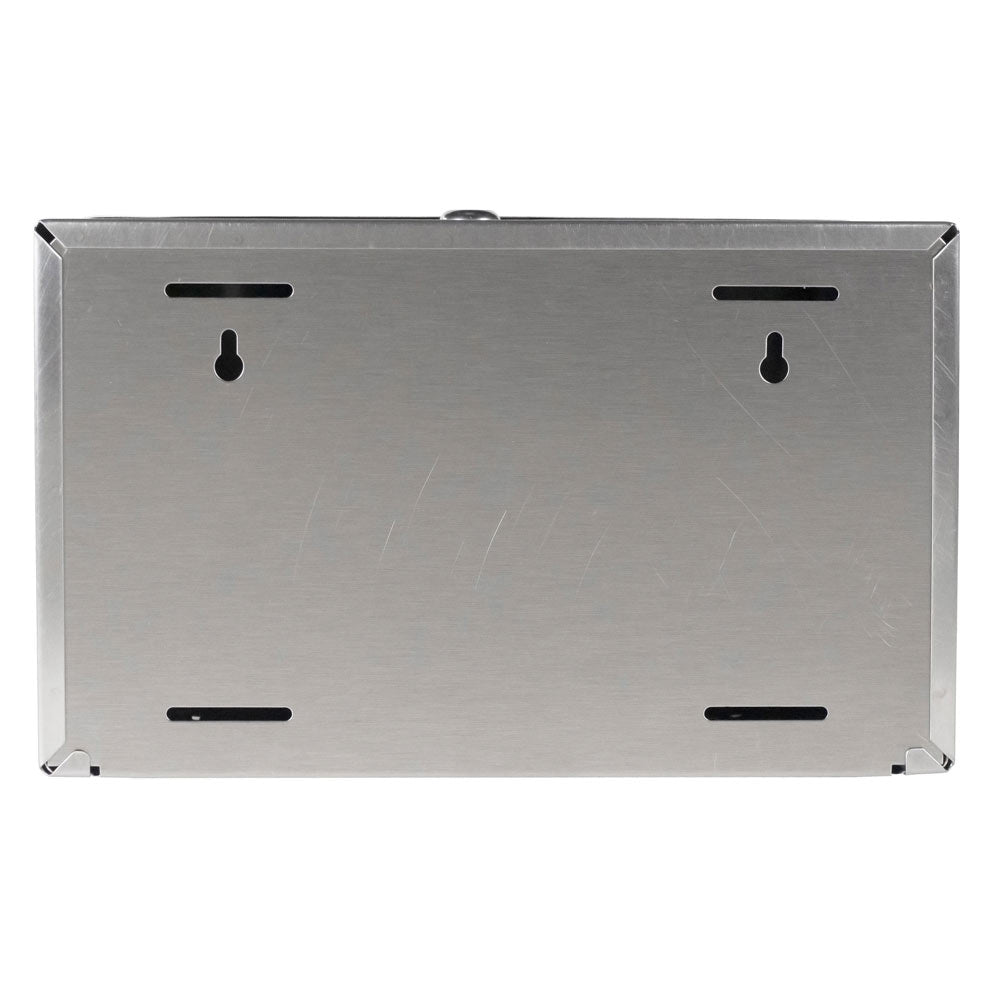

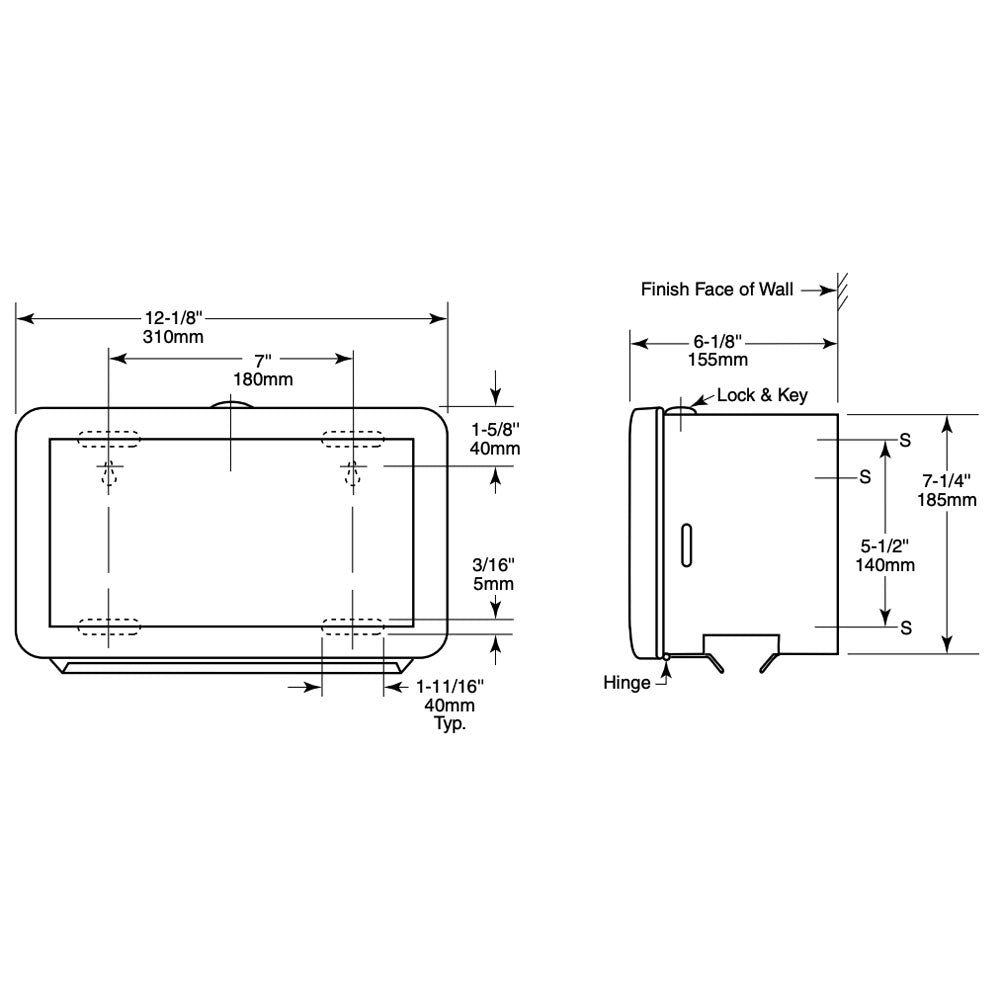

Mount unit on wall with #8 x 1-1/4" (4.2 x 32mm) sheet-metal screws, (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes and secure with sheet-metal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws or provide 1/8" (3mm) toggle bolts or expansion bolts.
Specification:
Surface-mounted paper towel dispenser shall be type-304 stainless steel with satin finish. Door shall be secured to cabinet with a full-length stainless steel piano-hinge. Cabinet shall be equipped with a tumbler lock keyed like other Bobrick washroom accessories. Unit shall accommodate 400 singlefold paper towels.
| Dispenser Type | C-Fold, Multifold or Singlefold |
| Paper Towel Type | C-Fold, Multifold or Singlefold |
| Dispenser Material | Stainless Steel |
| Mounting | Wall Mount |
| Total Recycled Content | 65% |
| Width | 12 3/4 Inches |
| Depth | 6 1/8 Inches |
| Height | 7 1/4 Inches |
| Capacity | 400 Towels |
