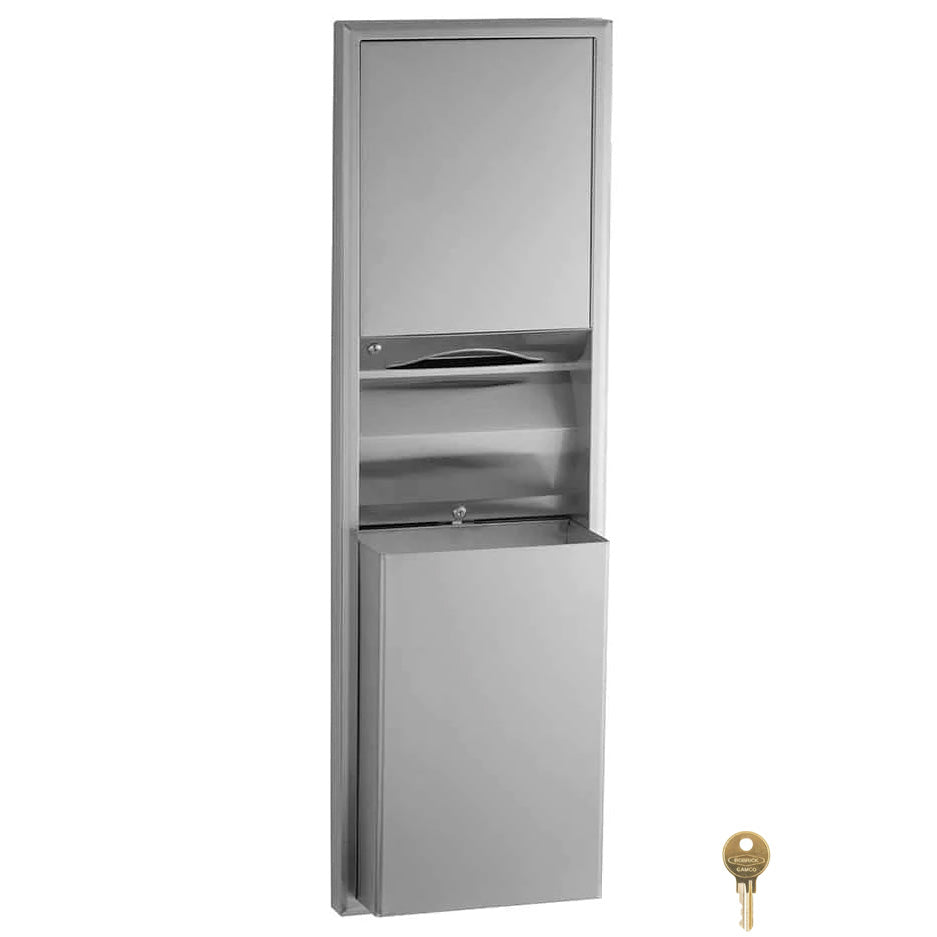

Bobrick B-3942 Combination Commercial Paper Towel Dispenser/Waste Receptacle, Semi-Recessed-Mounted, Stainless Steel

• Bobrick Classic Series
• Unit includes convertible folded paper towel module and 12-gallon waste receptacle
• Satin-finish stainless steel
• Seamless beveled flange
• Dispenses 600 C-fold or 800 multi-fold towels
• Removable waste receptacle locked into cabinet
• Receptacle is 8" (205mm) deep with capacity of 12-gal (45.5-L); extends 4 1/8" (105mm) from wall
• Rough Wall Opening: 16" W, 54-3/4" H, 2" min depth (405 x 1390 degree x 50mm)
• Skirt for semi-recessing
• Field conversion made easy without replacing existing cabinets in wall
• Interchangeable with: 368-60 Interchangeable Receptacle, 18-gal (68-L)
• 3974-250 Convertible Automatic, Universal Roll Paper Towel Dispenser Module Equipped with LED Light
• 3961-50 Touch-Free, Pull Towel Dispenser Module

Unit includes convertible folded paper towel module and 12-gallon waste receptacle. Satin-finish stainless steel. Seamless beveled flange. Dispenses 600 C-fold or 800 multifold towels. Removable waste receptacle locked into cabinet. Receptacle is 8" (205mm) deep with capacity of 12-gal. (45.5-L); extends 4 1/8" (105mm) from wall. Rough Wall Opening: 16" W, 54 3/4" H, 2" min. depth (405 x 1390 degree x 50mm). Skirt for semi-recessing. Field conversion made easy without replacing existing cabinets in wall. Interchangeable with: 368-60Interchangeable Receptacle, 18-gal. (68-L). 3974-250 Convertible Automatic, Universal Roll Paper Towel Dispenser Module Equipped with LED Light. 3961-50 Touch-Free, Pull Towel Dispenser Module.

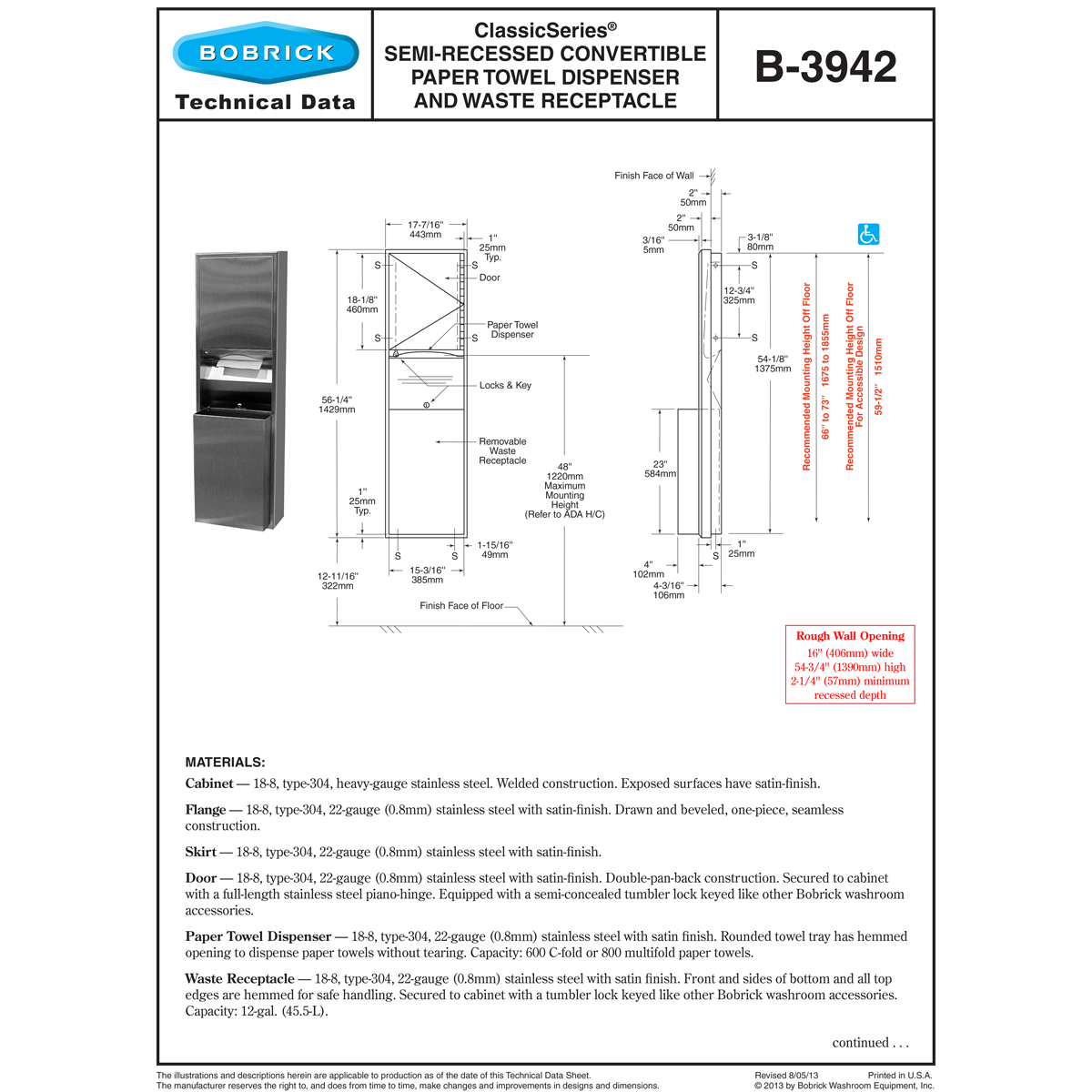

From Tech Data

MATERIALS:
Cabinet — 18-8, type-304, heavy-gauge stainless steel. Welded construction. Exposed surfaces have satin-finish.

Flange — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Drawn and beveled, one-piece, seamless construction.

Skirt — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish.

Door — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Double-pan-back construction. Secured to cabinet with a full-length stainless steel piano-hinge. Equipped with a semi-concealed tumbler lock keyed like other Bobrick washroom accessories.

Paper Towel Dispenser — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Rounded towel tray has hemmed opening to dispense paper towels without tearing. Capacity: 600 C-fold or 800 multifold paper towels.

Waste Receptacle — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Front and sides of bottom and all top edges are hemmed for safe handling. Secured to cabinet with a tumbler lock keyed like other Bobrick washroom accessories. Capacity: 12-gal. (45.5-L).

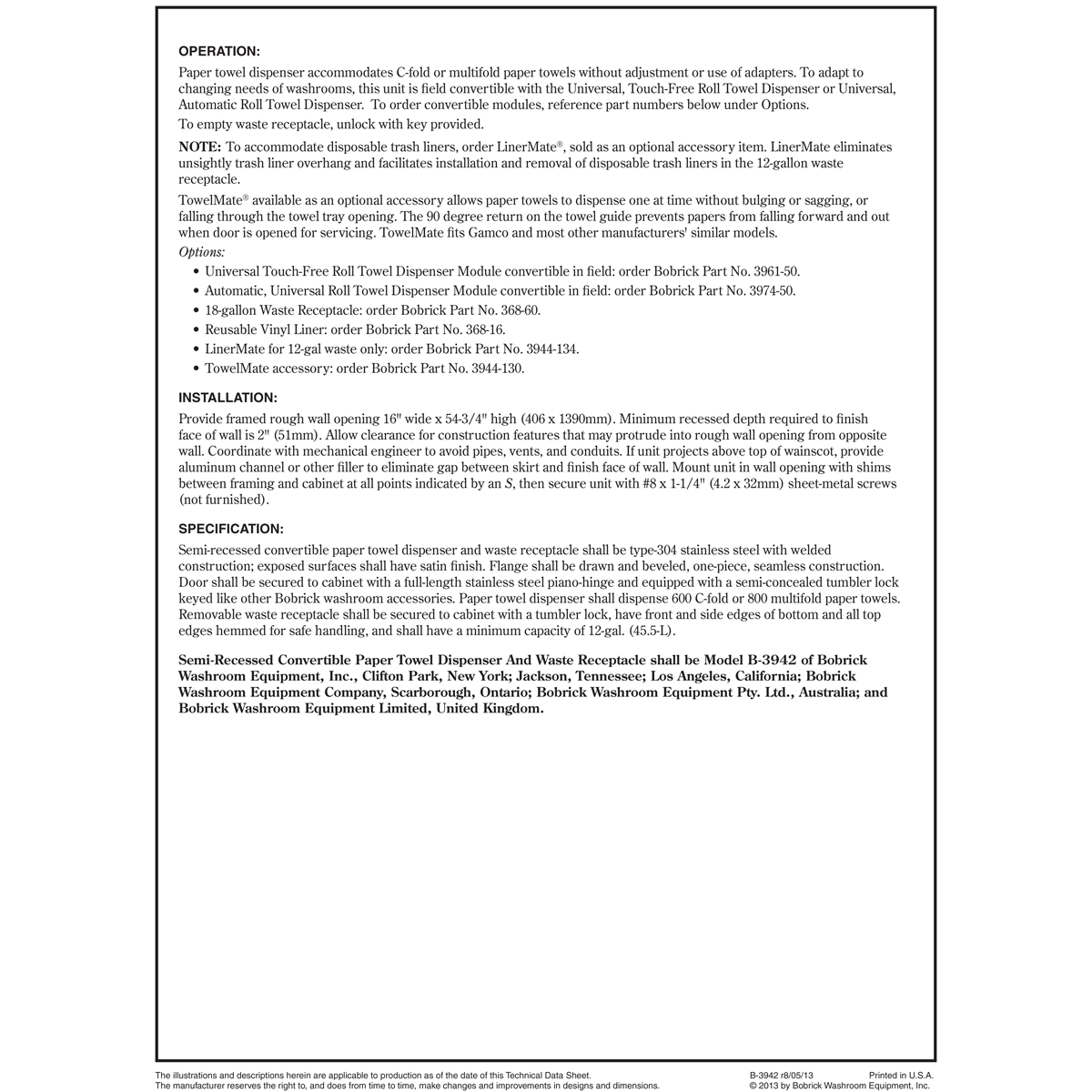

OPERATION:
Paper towel dispenser accommodates C-fold or multifold paper towels without adjustment or use of adapters. To adapt to changing needs of washrooms, this unit is field convertible with the Universal, Touch-Free Roll Towel Dispenser or Universal, Automatic Roll Towel Dispenser. To order convertible modules, reference part numbers below under Options. To empty waste receptacle, unlock with key provided.

NOTE: To accommodate disposable trash liners, order LinerMate®, sold as an optional accessory item. LinerMate eliminates unsightly trash liner overhang and facilitates installation and removal of disposable trash liners in the 12-gallon waste receptacle.

TowelMate® available as an optional accessory allows paper towels to dispense one at time without bulging or sagging, or falling through the towel tray opening. The 90 degree return on the towel guide prevents papers from falling forward and out when door is opened for servicing. TowelMate fits Gamco and most other manufacturers' similar models.

Options:
• Universal Touch-Free Roll Towel Dispenser Module convertible in field: order Bobrick Part No. 3961-50.
• Automatic, Universal Roll Towel Dispenser Module convertible in field: order Bobrick Part No. 3974-50.
• 18-gallon Waste Receptacle: order Bobrick Part No. 368-60.
• Reusable Vinyl Liner: order Bobrick Part No. 368-16.
• LinerMate for 12-gal waste only: order Bobrick Part No. 3944-134.
• TowelMate accessory: order Bobrick Part No. 3944-130.

INSTALLATION:

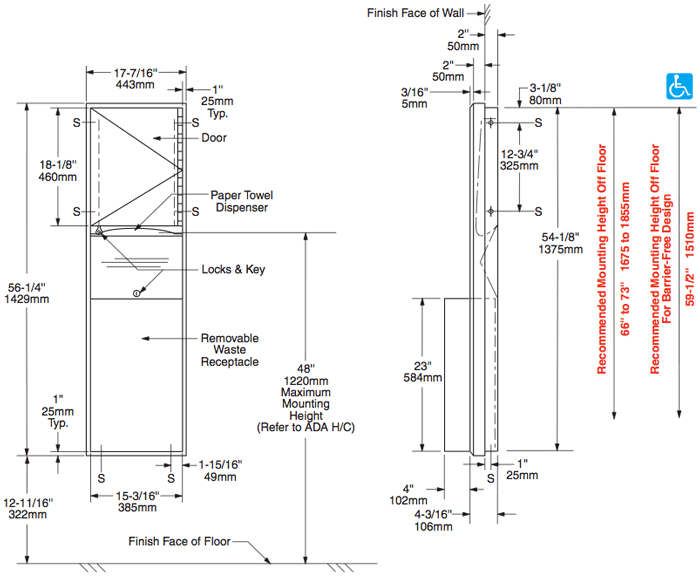

Provide framed rough wall opening 16" wide x 54-3/4" high (406 x 1390mm). Minimum recessed depth required to finish face of wall is 2" (51mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between skirt and finish face of wall. Mount unit in wall opening with shims between framing and cabinet at all points indicated by an S, then secure unit with #8 x 1-1/4" (4.2 x 32mm) sheet-metal screws (not furnished).

SPECIFICATION:
Semi-recessed convertible paper towel dispenser and waste receptacle shall be type-304 stainless steel with welded construction; exposed surfaces shall have satin finish. Flange shall be drawn and beveled, one-piece, seamless construction. Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a semi-concealed tumbler lock keyed like other Bobrick washroom accessories. Paper towel dispenser shall dispense 600 C-fold or 800 multifold paper towels. Removable waste receptacle shall be secured to cabinet with a tumbler lock, have front and
