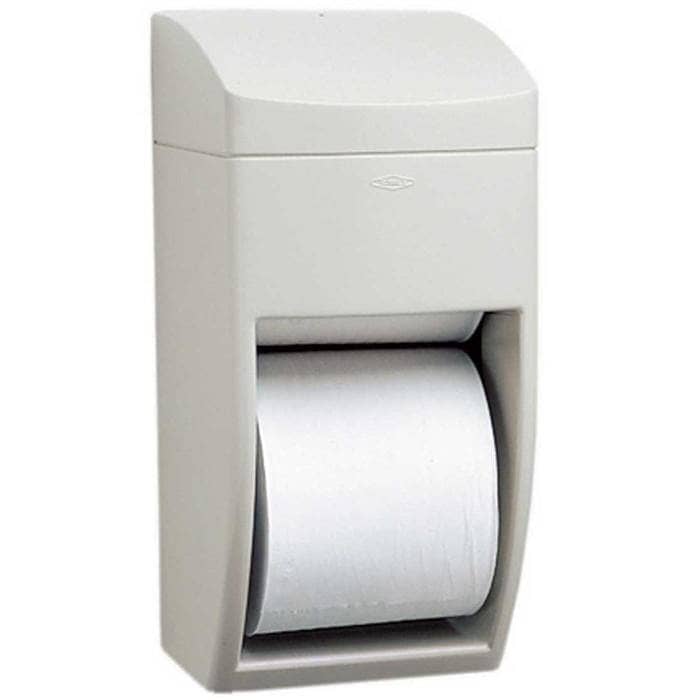

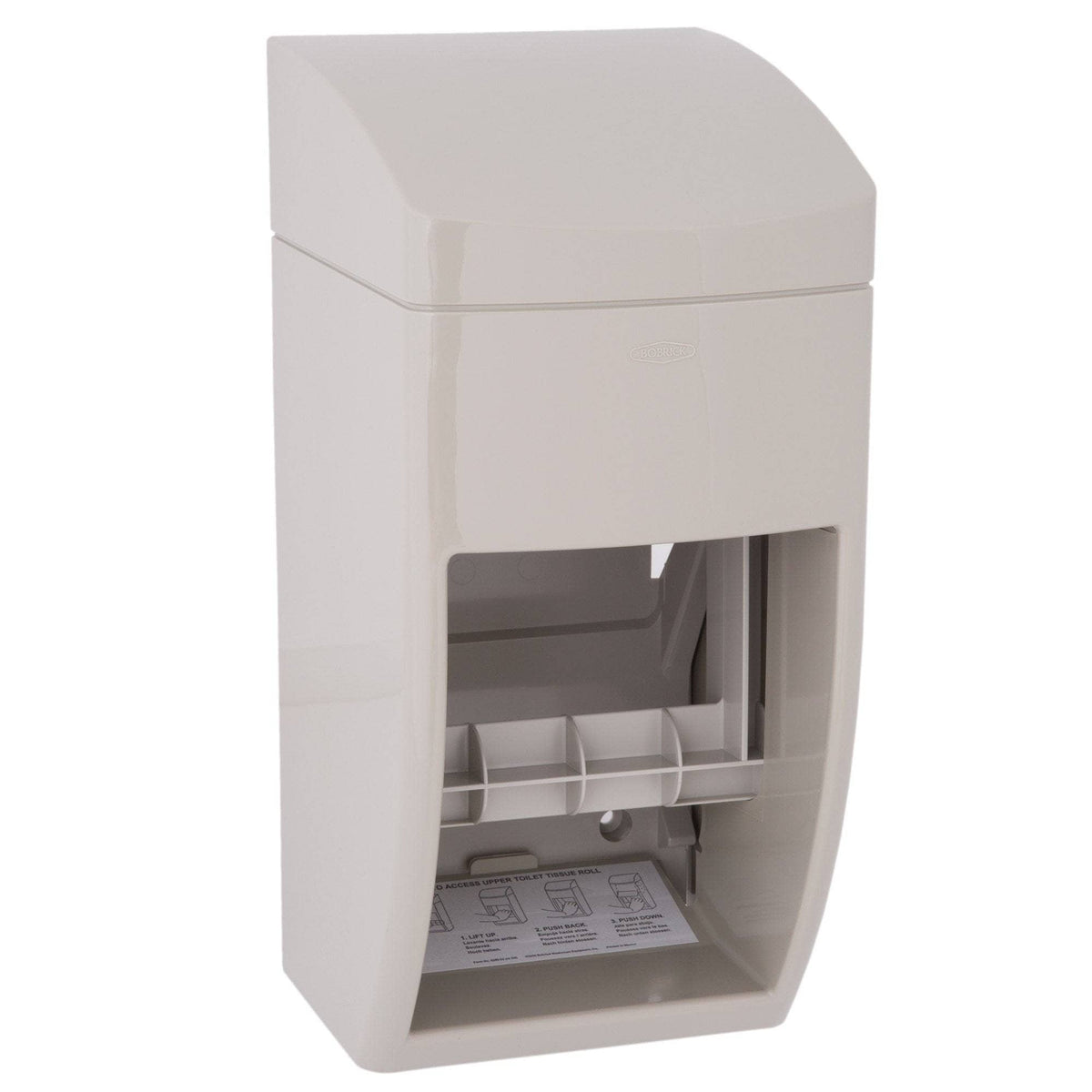

Durable ABS plastic; grey color
- Surface-mounted for straightforward installation.
- Automatic roll shifting when the bottom roll is depleted.
- Two-roll capacity, each up to 5-3/4" diameter (2000 sheets).
-
Secure, concealed locking device.

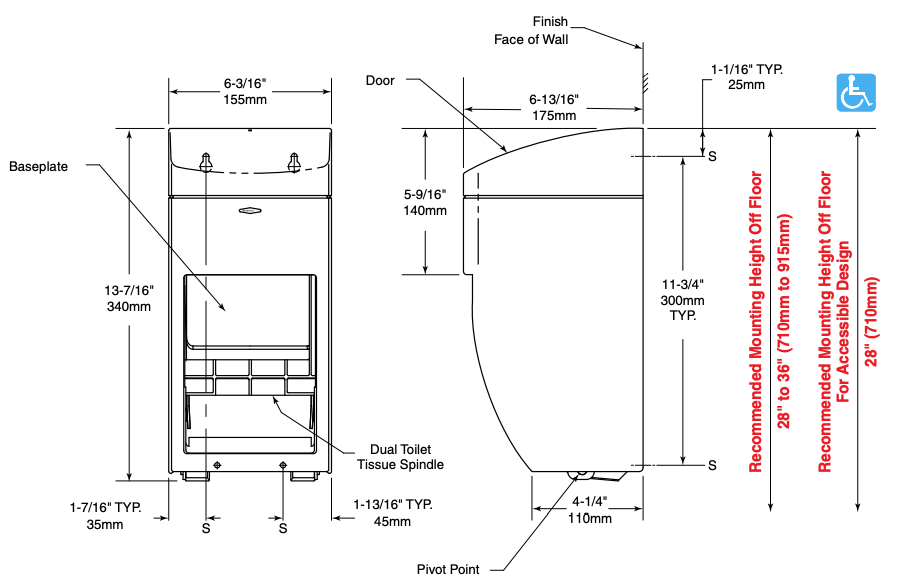

Durable ABS plastic; grey color. Two-roll dispensing mechanism for rolls up to 5 3/4" (145mm) diameter (2000 sheets). Extra roll easily shifts into place when bottom roll is depleted. Concealed locking device. Unit 6 1/4" W, 13 1/2" H, 6 7/8" D (160 x 345 x 175mm).

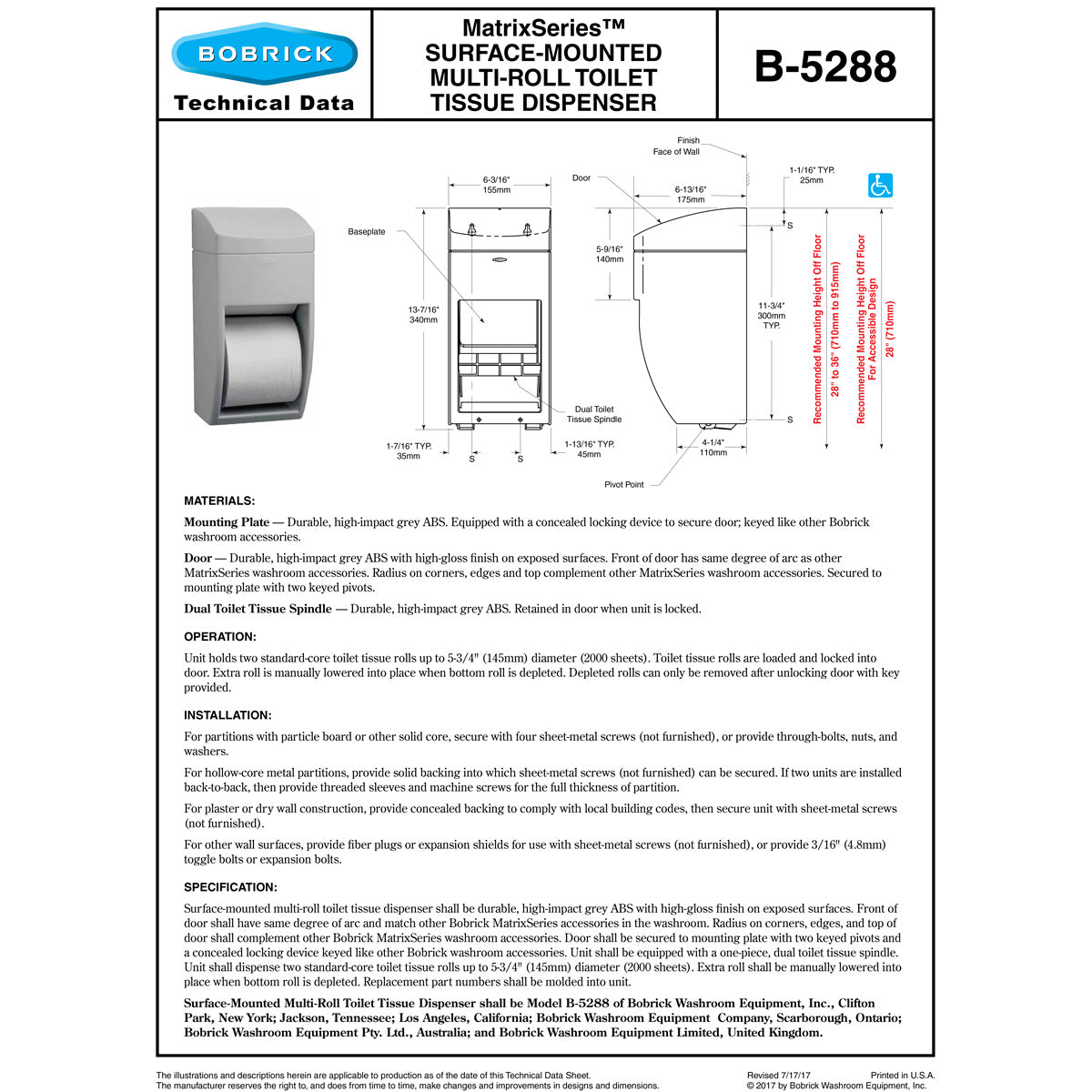

MATERIALS:

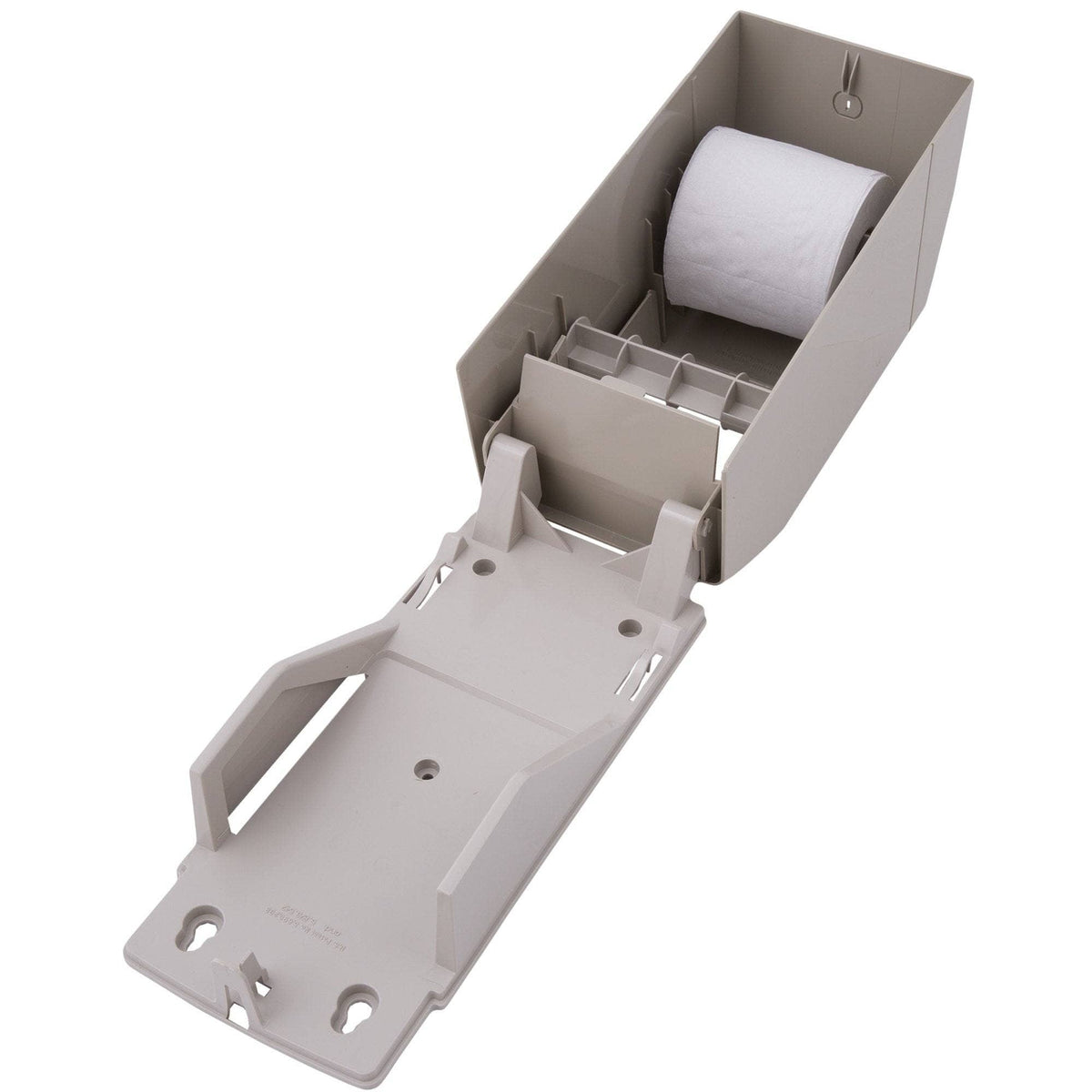

Mounting Plate — Durable, high-impact grey ABS. Equipped with a concealed locking device to secure door; keyed like other Bobrick washroom accessories.

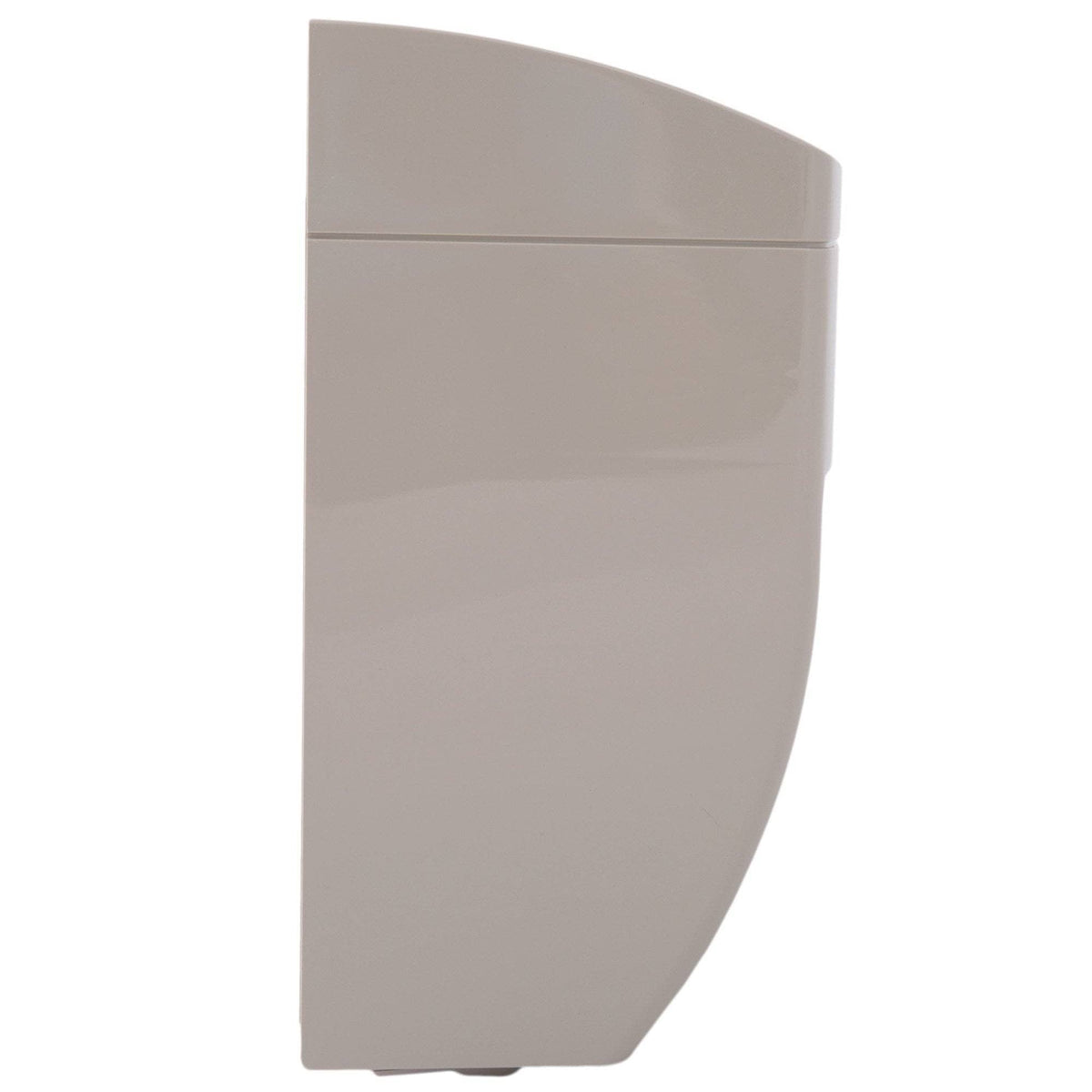

Door — Durable, high-impact grey ABS with high-gloss finish on exposed surfaces. Front of door has same degree of arc as other MatrixSeries washroom accessories. Radius on corners, edges and top complement other MatrixSeries washroom accessories. Secured to mounting plate with two keyed pivots.

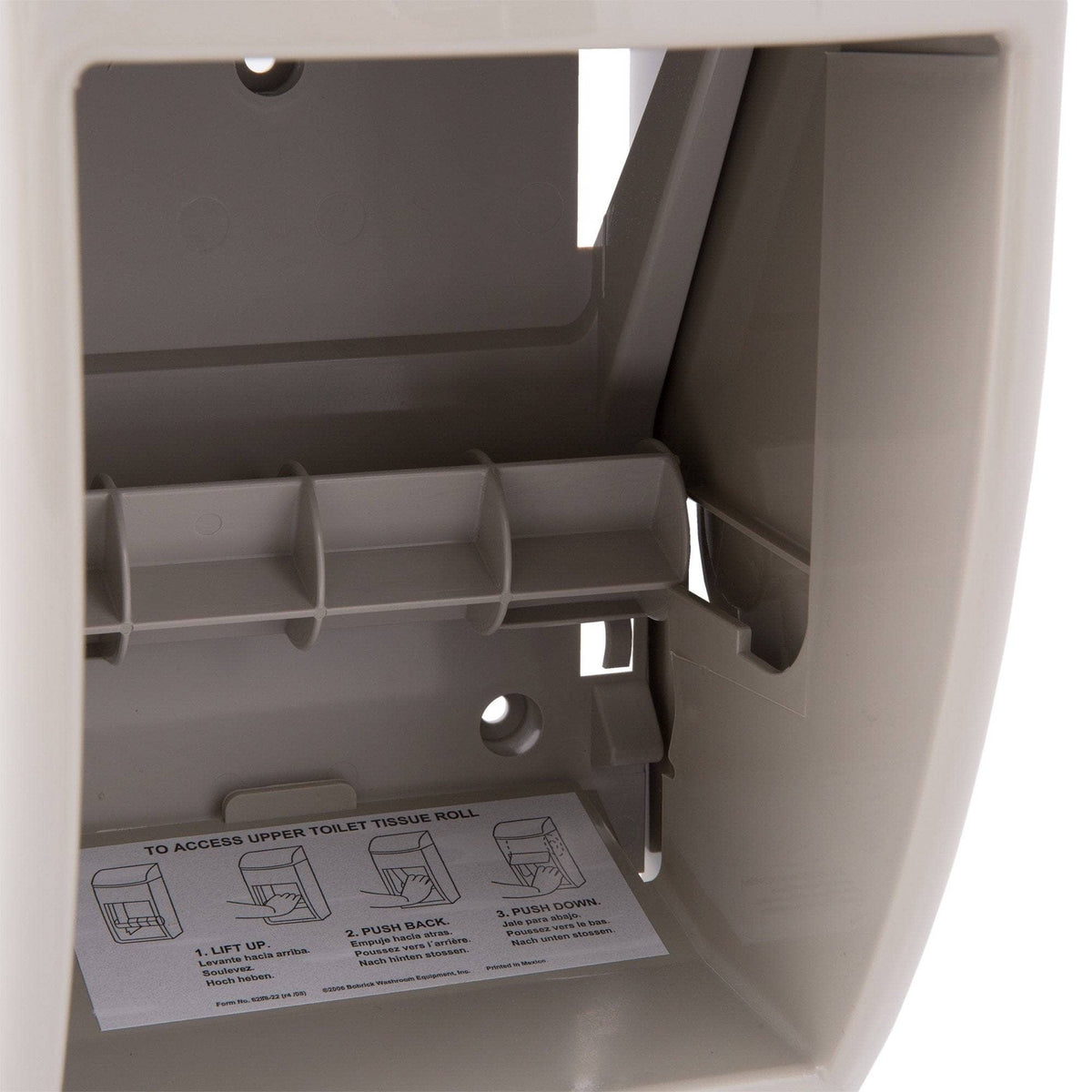

Dual Toilet Tissue Spindle — Durable, high-impact grey ABS. Retained in door when unit is locked.
OPERATION:
Unit holds two standard-core toilet tissue rolls up to 5-3/4" (145mm) diameter (2000 sheets). Toilet tissue rolls are loaded and locked into door. Extra roll is manually lowered into place when bottom roll is depleted. Depleted rolls can only be removed after unlocking door with key provided.
INSTALLATION:
For partitions with particle board or other solid core, secure with four sheet-metal screws (not furnished), or provide through-bolts, nuts, and washers.
For hollow-core metal partitions, provide solid backing into which sheet-metal screws (not furnished) can be secured. If two units are installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws (not furnished).
For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws (not furnished), or provide 3/16" (4.8mm) toggle bolts or expansion bolts.
SPECIFICATION:
Surface-mounted multi-roll toilet tissue dispenser shall be durable, high-impact grey ABS with high-gloss finish on exposed surfaces. Front of door shall have same degree of arc and match other Bobrick MatrixSeries accessories in the washroom. Radius on corners, edges, and top of door shall complement other Bobrick MatrixSeries washroom accessories. Door shall be secured to mounting plate with two keyed pivots and a concealed locking device keyed like other Bobrick washroom accessories. Unit shall be equipped with a one-piece, dual toilet tissue spindle. Unit shall dispense two standard-core toilet tissue rolls up to 5-3/4"
| Width | 6 3/16 Inches |
| Depth | 4 1/4 Inches |
| Height | 13 7/16 Inches |
| Core Diameter | Standard Core |
| Roll Diameter | 5 3/4 Inches |
| Capacity | Double Roll |
| Color | Gray |
| Dispenser Type | Open |
| Features | Locking |
| Material | Plastic |
| Roll Type | Standard |
| Style | Surface Mounted |
| Type | Dispensers |
