Bobrick Fino Collection
Seam welded stainless steel waste receptacle.
-

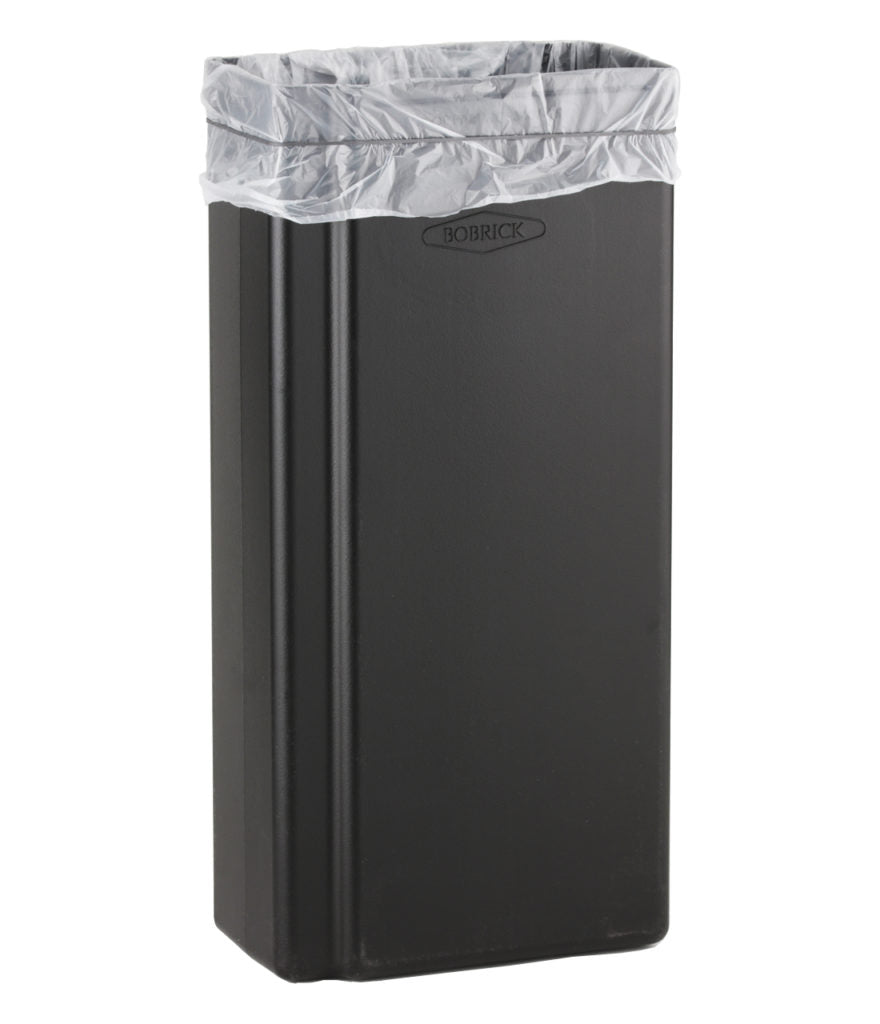

Waste Container: Removable, leak-proof, rigid molded plastic.
-
Capacity: 6-Gal (23-L)
-
Width: 11-11/16″ (297mm)
-
Height: 23-7/8″ (607mm)
-
Depth: 6-1/8″ (156mm)
-
Material: Type 304, 18 gauge (1.2mm), stainless steel.
-
Finish: Satin finish* as standard.
MATERIALS:
Receptacle — Type 304 stainless steel, 18 gauge (1,2mm) with satin finish. All-seam-welded construction with hemmed edges at top and bottom. Equipped for hosting a removable waste container, capacity 22.6 L (6-gal.). Waste Container — Leak-proof rigid molded plastic. Removable for servicing. Capacity: 22.6 L (6-gal.).
OPERATION:

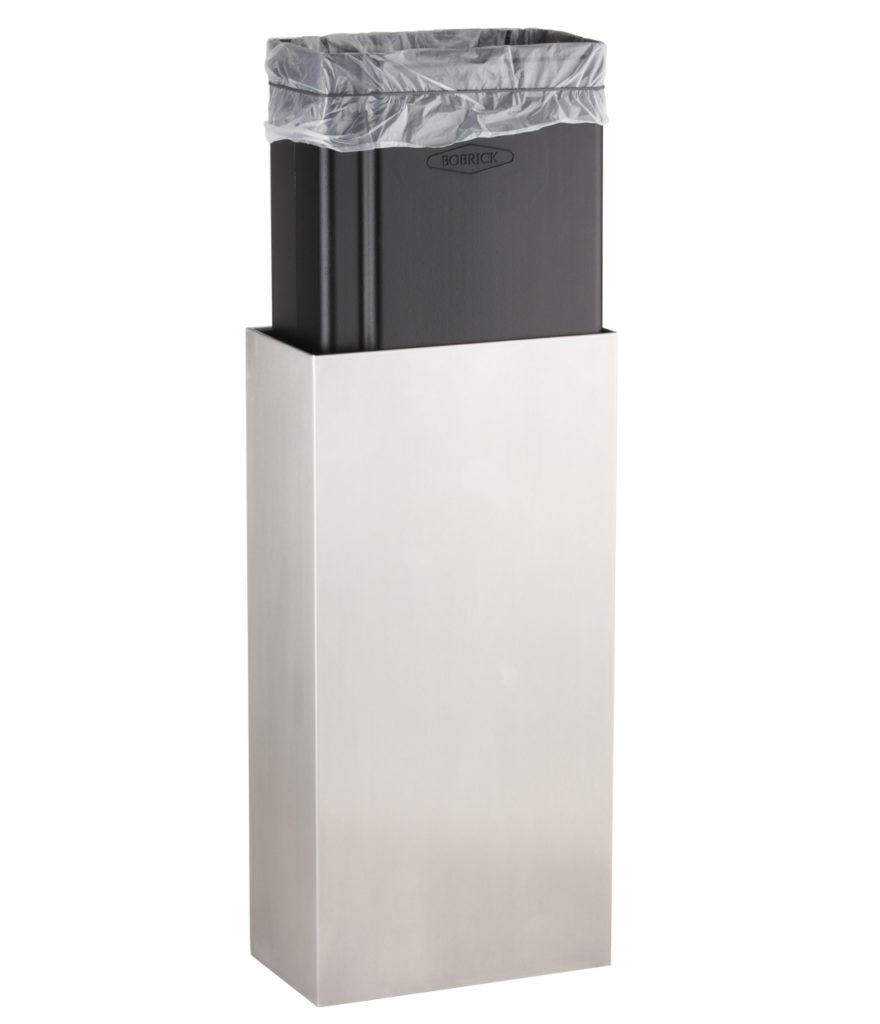

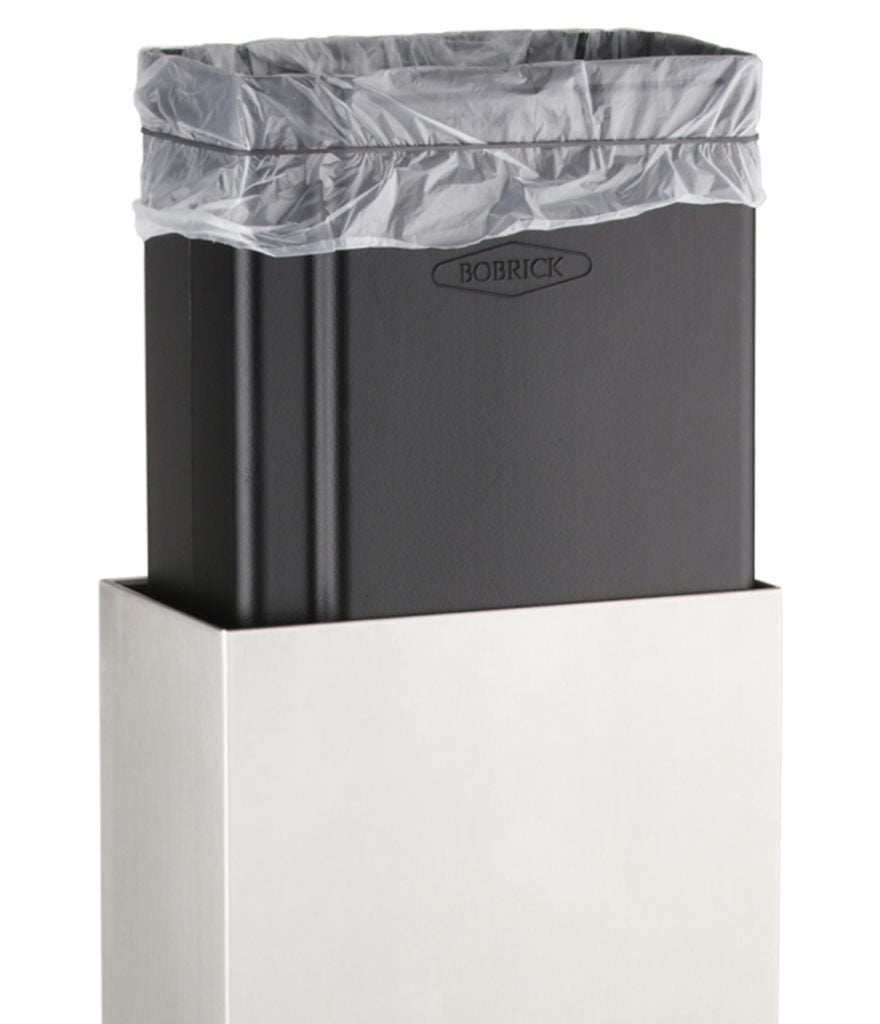

Waste Container can be removed by pulling it upwards out of the waste receptacle. Space between bottom of receptacle and floor, when unit is properly mounted on wall, facilitates floor cleaning.
INSTALLATION:

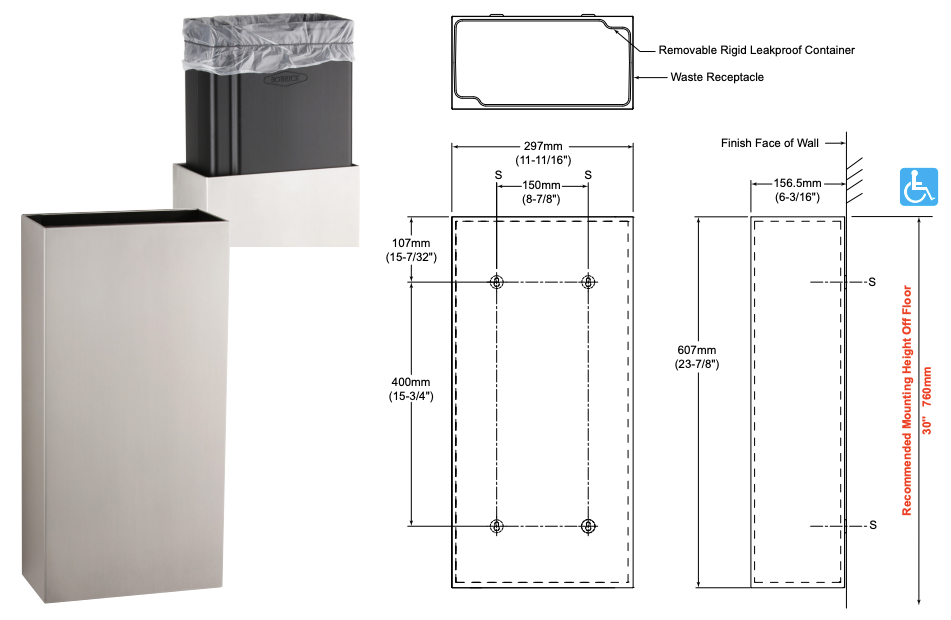

Mount unit on wall with four sheet-metal screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8" (3mm) toggle bolts or expansion bolts.
Designer's note: a dedicated rubber band - not furnished - will be fixated around the overlayed plastic bag, also not furnished holding the plastic bag in snug fit around the waste container, providing a clean look by preventing the plastic bag from being wrapped outside, around the waste receptacle. Please use widely available Waste bagrubber bands ("can bands") of 7" x 1/8" for max. 32 gal.
SPECIFICATION:
Surface-mounted waste receptacle, type 304 stainless steel, 18 gauge (1,2mm) with satin finish. All-seam-welded construction with hemmed edges at top and bottom. Equipped for hosting a removable waste container, capacity 22.6 L (6 gal.). Furnished with a leak-proof rigid molded plastic waste container. Removable for servicing. Capacity: 22.6 L (6 gal.).
| Item | Waste Receptacle |
| Material | 304 Stainless Steel |
| Container Material | Removable, leak-proof, rigid molded plastic |
| Finish | Satin Finish |
| Capacity | 6 Gallon |
| Height | 23-7/8" |
| Width | 11-11/16" |
| Depth | 6-1/8" |
| Color | Silver |
| Features | ADA Compliant |
| Finish | Satin |
| Gauge | 18 Gauge |
| Lid Type | No Lid |
| Liner Material | Rigid Plastic |
| Material | Stainless Steel |
| Product Line | Bobrick Fino |
| Shape | Rectangle |
| Stainless Steel Type | Type 304 |
