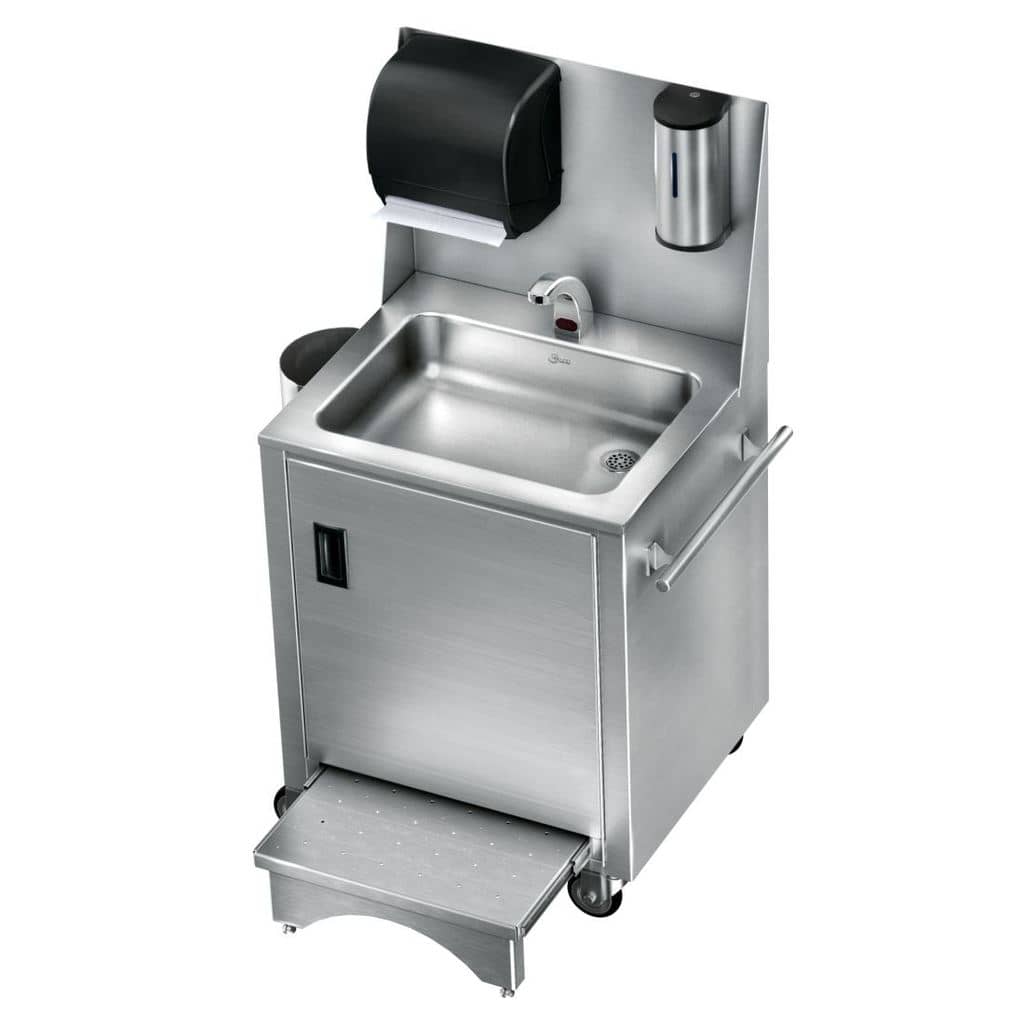

Just HY-G1-TP Portable Handwashing Station, Hot/Cold Water, Touch-Free Sensor Faucet, Includes Automatic Soap & Towel Dispenser

This portable hand washing station is convenient for any indoor use, and rugged enough for outdoor use at sporting events and other locations where water is limited and hands-free cleanliness a must. These hand wash sink stations are essential in the management of clean water and good hygiene practices.

• Heavy-duty stainless steel construction of 16 and 18 gauge, type 304
• Large capacity wash basin (ID: 16”W x 22”L x 5”D)
• ADA Compliant - side reach
• Hand-free sensor faucet and mixing valve
• Sensor activated soap dispenser
• Sensor activated paper towel dispenser
• Large capacity wash basin
• Offset drain location rear corner to reduce aerosolization
• Recessing slide step for child height access
• 120 volt water heater 2 Imp. gallons
• 120 volt water pump
• Waste receptacle
• Heavy-duty handle for easy portability

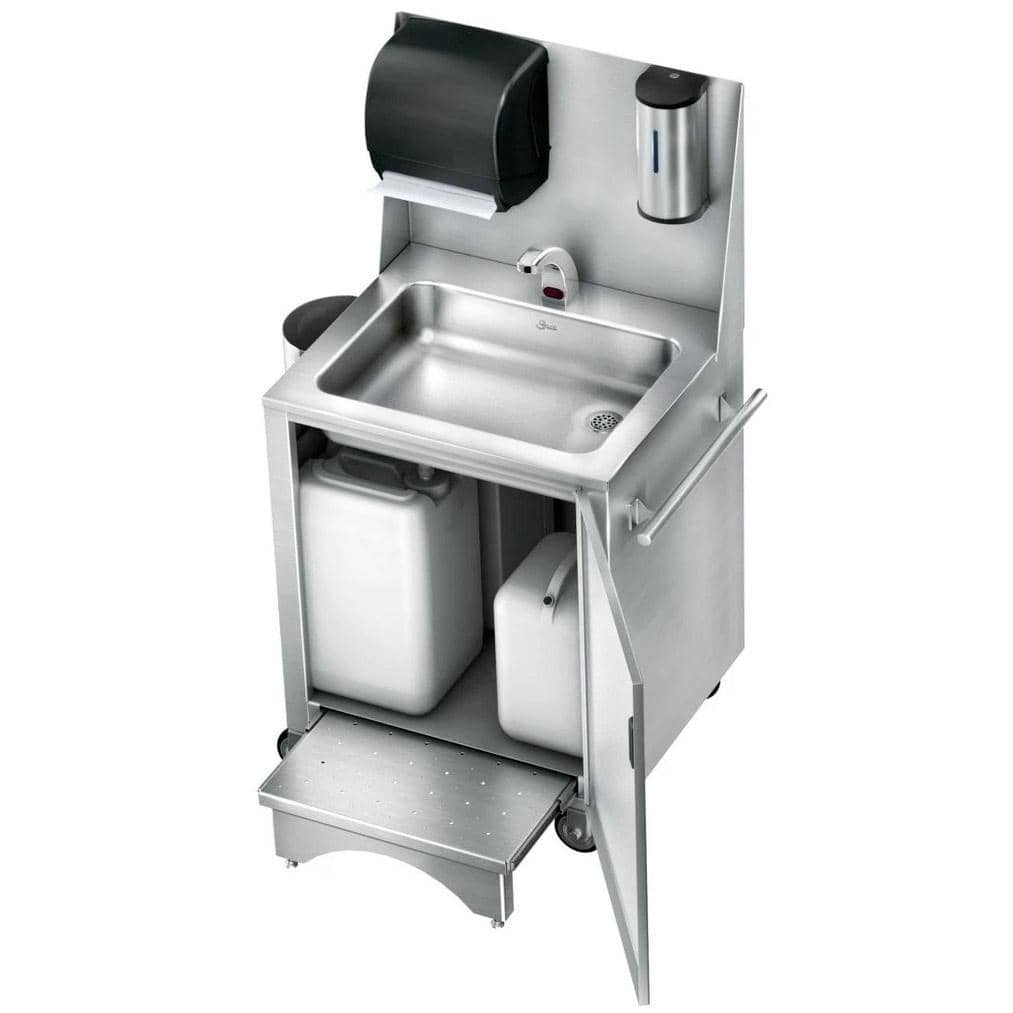

• Removable fresh water tanks
• Removable waste water tanks
• Lockable access door
• Unit components are NSF, CSA, UL or equal approved

J-6913 Faucet: Architectural/Engineering Specification: AquaSense faucets are ideal for high-use applications where durability and hands-free operation are necessary. ADA compliant, battery powered, polished chrome-plated cast brass sensor faucet with infrared proximity sensor for retrofit and new construction. Unit is furnished with a standard 1.5 GPM aerator, and mounting hardware. Just Lead Free products (-XL) is the line of durable, high quality brass faucets and fixtures that are designed and manufactured to comply with Section 1417 of the Safe Drinking Water Act (SDWA) which mandates the weighted average lead content of no more than 0.25% of the wetted surface.

Slimroll Electronic Towel Dispenser: The sleek design and touchless dispensing system helps to minimize the spread of dirt and germs all while providing 25% more hand dries over folded towels. The most efficient system on the market, the ultra-compact Slimroll allows you to mount the dispenser close to sinks and in tight places and keeping it close to the water helps reduce drips and slips. Simply place a hand under the dispenser to receive a nominal 10 inches of towel, a second sheet will dispense at 10% reduced length when activated within a few seconds of the first dispense. The dispenser is made of high impact plastic with translucent sides and opaque black cover.

• Quiet dispensing system & Quick load capabilitysadf• Key or keyless entry option & 4 D-Cell batteries included
• Includes lifetime warranty through Kimberly-Clark Professional
• For use with corresponding Scott Slimroll Paper Towel
• Dispenses one 8” diameter, 580’ hard roll towel
• Dimensions: 12” x 12” x 7”

JSPD - 801 Soap Dispenser:

• Automatic operation via sensor activation

• ADA compliant
• Stainless steel body
• Pre-measured dispensing volume (1-1.5ml)
• Reservoir capacity 900ml-refillable (800 ml disposable supplied by others)
• Sensor detection range adjustable (2.4 - 1.5 inches) (60 - 38 mm)
• Sensing delay - 0.5 - 1 sec
• Room temperature 41oF ~ 104oF (5o~40oC)
• Viscosity range 1~3000 (cP)(mPas)
• Self contained valve/nozzle (Peristaltic tube)
• Battery operated (6) AA size alkaline (1.5V)
• Battery life aprox 1 year (35,000 activations)

Electric Water Heater: Just’s electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces. With a 6-gallon (nominal) tank and 1 element delivering 1440 watts @ 120V, the EMT 6 is designed to fit into tight spaces. The Glass Lined Tank and Anode Rod help protect the tank from the corrosive effects of water, and is accompanied by a 6-year limited warranty.

Model 4100 Industrial Series “Quad” Pump: Industrial Quad Pumps are designed for a wide range of applications and are constructed from a selection of materials suitable for handling a broad range of chemicals. The Quad series of diaphragm pumps are self-priming and can be run dry without harm. They are intended for intermittent duty cycles but can be run continuously for short periods of time. The higher the duty cycle the shorter the expected life of the pump. Typical pump uses are liquid transfer, spraying, cooling, circulation, filtration and dispensing.

JTM-47 - Thermostatic Mixing Valve: Anti-Scald mixing valve with bronze body with integral check valves and adjustment cap with locking feature. 1/2” sweat union inlet and outlet connections. Temperature range from 60 to 120 F(16 C to 49 C). ASSE Standard 1016 Listed. Note: Specifier responsible to determine the delivered water temperature to the safety fixture. Comfortable range considered to be between 60ºF to 90ºF (15ºC to 32ºC).
